For optimal thermal performance, it is recommended to have a solid copper plane on the PCB underneath the MIC2044-2YTS, and to use thermal vias to connect the plane to the device's thermal pad. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) between the device and the heat sink can also improve thermal performance.
To ensure reliable operation at high temperatures, it is essential to follow proper thermal design and layout guidelines, as mentioned earlier. Additionally, the device should be operated within its specified temperature range, and the input voltage should be derated according to the temperature derating curve provided in the datasheet. It is also recommended to use a heat sink with a suitable thermal resistance to keep the junction temperature within the specified range.
The MIC2044-2YTS has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage to the device. The device can withstand ESD pulses up to 2 kV according to the Human Body Model (HBM) and 200 V according to the Machine Model (MM). However, it is recommended to use additional ESD protection devices, such as TVS diodes, if the device is exposed to high ESD risks.
To troubleshoot issues with the MIC2044-2YTS, it is recommended to follow a systematic approach, starting with checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check the output voltage waveform and ensure that it is within the specified range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Microchip's technical support team for assistance.
The recommended input capacitor for the MIC2044-2YTS is a 10 μF ceramic capacitor with a voltage rating of at least 10 V. The recommended output capacitor is a 22 μF ceramic capacitor with a voltage rating of at least 10 V. However, the actual capacitor values may vary depending on the specific application requirements and PCB layout. It is recommended to consult the datasheet and application notes for more information on capacitor selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2044-2YTS Overview

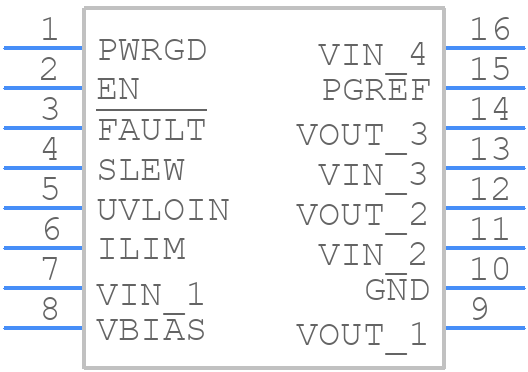

Use the download button to access the MIC2044-2YTS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC20,
or try a keyword search, such as Power Management Circuits
