MIC2075-1YMM-TR - Microchip

Description: Power Switch ICs - Power Distribution USB High-Side Power Switch

Download MIC2075-1YMM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

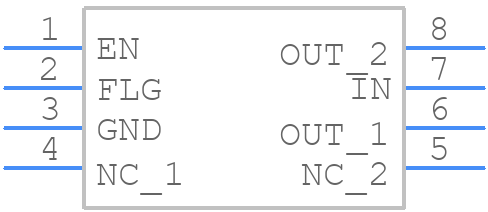

MIC2075-1YMM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2075-1YMM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC5239-5.0YMM
click to zoom
3D Models
MIC2075-1YMM-TR - Microchip - 3D model - Small Outline Packages - MIC5239-5.0YMM
click to zoom

MIC2075-1YMM-TR Details

  • Manufacturer Part Number:

    MIC2075-1YMM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    2.5

  • Width:

    3 mm

MIC2075-1YMM-TR Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides some guidelines, but a more detailed application note or a reference design would be helpful.
  • In addition to following the recommended operating conditions, ensure good thermal design, and consider using thermal monitoring and shutdown features. Also, consider using a thermistor or thermocouple to monitor the temperature.
  • Using a different input capacitor value may affect the stability and transient response of the regulator. It's recommended to use the suggested value, but if a different value is used, ensure it meets the minimum ESR and capacitance requirements.
  • While the MIC2075-1YMM-TR is a high-quality device, it may not meet the specific requirements of high-reliability or automotive applications. Check the device's AEC-Q100 qualification and Microchip's automotive-grade offerings for suitable alternatives.
  • Start by verifying the input voltage, output load, and PCB layout. Check for oscillations, noise, or instability using an oscilloscope. Consult the datasheet, application notes, and Microchip's support resources for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2075-1YMM-TR Overview

Use the download button to access the MIC2075-1YMM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC20, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
