MIC2097-2YMT-TR - Microchip

Description: Power Switch ICs - Power Distribution Current Limiting, High-Side Power Switch with Kickstart

Download MIC2097-2YMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

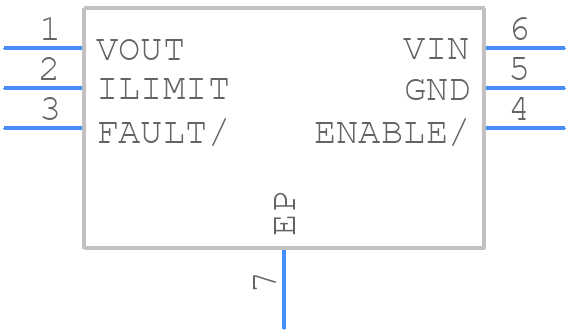

MIC2097-2YMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2097-2YMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MIC2097-2YMT-TR
click to zoom
3D Models
MIC2097-2YMT-TR - Microchip - 3D model - Small Outline No-lead - MIC2097-2YMT-TR
click to zoom

MIC2097-2YMT-TR Details

  • Manufacturer Part Number:

    MIC2097-2YMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1.60 X 1.60 MM, TMLF-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.25V,+2.15V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

MIC2097-2YMT-TR Frequently Asked Questions (FAQs)

  • Microchip recommends a thermal pad on the bottom of the package, connected to a copper plane on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper plane.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using a thermal interface material (TIM) between the device and heat sink, and ensuring good airflow around the device.
  • The maximum allowed voltage on the input pins is 6V, which is the absolute maximum rating. However, for normal operation, the input voltage should be within the recommended operating range of 4.5V to 5.5V.
  • Yes, the MIC2097-2YMT-TR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the MIC2097-2YMT-TR, start by verifying the input voltage and current, and checking for proper thermal design and layout. Use oscilloscopes and other diagnostic tools to identify any anomalies in the output voltage or current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
