MIC2536-2YM - Microchip

Description: Power Switch ICs - Power Distribution Dual USB Switch

Download MIC2536-2YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

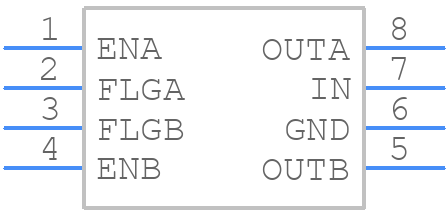

MIC2536-2YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2536-2YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP (M)
click to zoom
3D Models
MIC2536-2YM - Microchip - 3D model - Small Outline Packages - 8-Lead SOP (M)
click to zoom

MIC2536-2YM Details

  • Manufacturer Part Number:

    MIC2536-2YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.879 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MIC2536-2YM Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC2536-2YM near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have a solid ground plane to help dissipate heat.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design guidelines, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and even permanent damage. It's crucial to ensure the device operates within its specified temperature range to maintain reliability and performance.
  • To troubleshoot issues with the MIC2536-2YM, start by checking the power supply, input voltage, and output voltage. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • To minimize EMI and RFI, use proper PCB layout techniques, such as separating analog and digital circuits, using shielding, and implementing filtering and decoupling. Follow the recommended layout guidelines in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2536-2YM Overview

Use the download button to access the MIC2536-2YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC25, or try a keyword search, such as Power Management Circuits
