A good PCB layout for optimal thermal performance involves placing the MIC2582-JYM-TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal vias small and numerous can help to dissipate heat more efficiently.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing thermal resistance between the device and the heat sink. Additionally, derating the output current and voltage can help to reduce the device's power dissipation and junction temperature.
To ensure EMI and EMC compliance, it's crucial to follow proper PCB layout and design guidelines, such as keeping the switching node (SW) away from sensitive analog circuits, using a common-mode choke or ferrite bead to filter the input voltage, and minimizing the loop area of the power stage. Additionally, using a shielded inductor and placing the MIC2582-JYM-TR near the input capacitors can help to reduce EMI radiation.
To optimize the output capacitor selection, consider the following factors: equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a capacitance value between 10uF to 22uF and a voltage rating above the output voltage is recommended. Additionally, using a capacitor with a low inductance and a high ripple current rating can help to improve the overall performance and stability of the converter.
When selecting an input capacitor, consider the following factors: capacitance value, voltage rating, and ESR. A capacitor with a high capacitance value (e.g., 10uF to 22uF) and a voltage rating above the input voltage is recommended. Additionally, a low-ESR capacitor can help to reduce the input voltage ripple and improve the overall performance of the converter.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2582-JYM-TR Overview

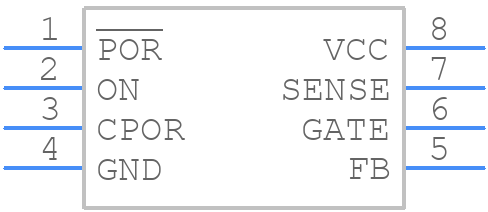

Use the download button to access the MIC2582-JYM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC25,
or try a keyword search, such as Power Management Circuits
