MIC2782CLYCS-TR - Microchip

Description: Supervisory Circuits Dual Input Push Button Reset IC

Download MIC2782CLYCS-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

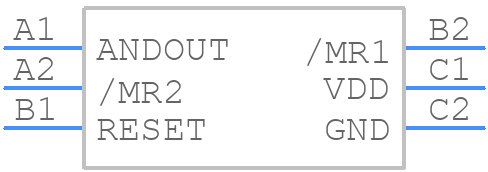

MIC2782CLYCS-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2782CLYCS-TR - Microchip PCB footprint - BGA - BGA - 6-Bump,0.4mm pitch 0.8x1.2mm WLCSP(CS)
click to zoom
3D Models
MIC2782CLYCS-TR - Microchip - 3D model - BGA - 6-Bump,0.4mm pitch 0.8x1.2mm WLCSP(CS)
click to zoom

MIC2782CLYCS-TR Details

  • Manufacturer Part Number:

    MIC2782CLYCS-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    6

  • Manufacturer Package Code:

    WLCSP-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PBGA-B6

  • Length:

    1.2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.575 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    0.8 mm

MIC2782CLYCS-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2782 datasheet, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Microchip provides guidelines for capacitor selection in the datasheet, including recommended values and characteristics.
  • The MIC2782CLYCS-TR has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled to maintain a safe operating temperature.
  • The MIC2782CLYCS-TR has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and recommended component values.
  • The recommended startup sequence for MIC2782CLYCS-TR is to first apply the input voltage, followed by the enable signal (EN). This ensures that the device is properly biased and configured before the output voltage is enabled.
