MIC2800-G2SYML-TR - Microchip

Description: MICROCHIP - MIC2800-G2SYML-TR - Power Management, 5.5V Supply, 1 Step-Down DC-DC Converters, 2 LDOs, 3 Regulated Outputs, QFN-16

Download MIC2800-G2SYML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

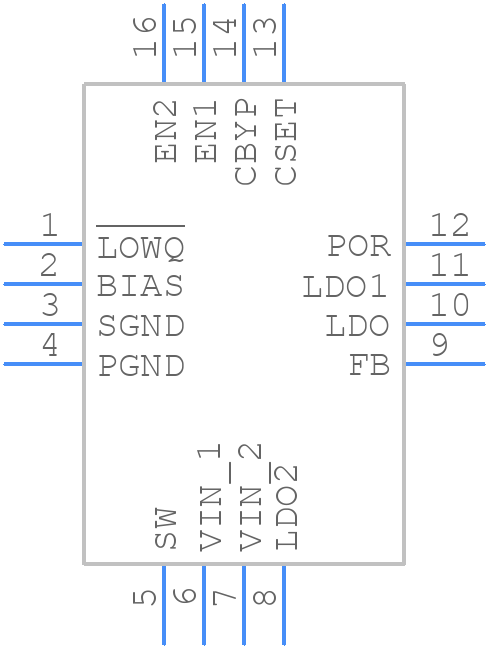

Symbol
MIC2800-G2SYML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2800-G2SYML-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-PIN 3mm X 3mm QFN
click to zoom
3D Models
MIC2800-G2SYML-TR - Microchip - 3D model - Quad Flat No-Lead - 16-PIN 3mm X 3mm QFN
click to zoom

MIC2800-G2SYML-TR Details

  • Manufacturer Part Number:

    MIC2800-G2SYML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-10-30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MIC2800-G2SYML-TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC2800-G2SYML-TR should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range (–40°C to +125°C). Also, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
  • The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. These capacitors should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • To troubleshoot issues with the MIC2800-G2SYML-TR, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for noise, ringing, or oscillations on the input and output lines. Also, verify that the device is operated within the recommended temperature range and that the PCB layout is correct.
  • Yes, the MIC2800-G2SYML-TR is suitable for high-reliability and safety-critical applications. However, it is essential to follow Microchip's guidelines for designing and testing high-reliability systems, and to ensure that the device is operated within the recommended specifications and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2800-G2SYML-TR Overview

Use the download button to access the MIC2800-G2SYML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC28, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
