MIC2875-AYMT-T5 - Microchip

Description: Switching Voltage Regulators Ultrasonic Synchronous Boost Regulator

Download MIC2875-AYMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

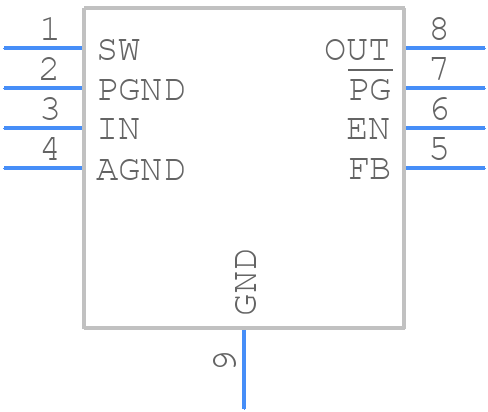

MIC2875-AYMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2875-AYMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MIC2875-AYMT-T5
click to zoom
3D Models
MIC2875-AYMT-T5 - Microchip - 3D model - Small Outline No-lead - MIC2875-AYMT-T5
click to zoom

MIC2875-AYMT-T5 Details

  • Manufacturer Part Number:

    MIC2875-AYMT-T5

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6

  • Additional Feature:

    ADJ O/P VOLTAGE FORM 2.5V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    45 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2875-AYMT-T5 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises monotonically during start-up, and falls monotonically during shutdown. Also, add a soft-start capacitor (CSS) to limit the inrush current and prevent voltage overshoot.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the regulator's stability and output voltage accuracy.
  • Yes, but with some precautions. The MIC2875 is rated for operation up to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the input voltage, output capacitor, and feedback network for any issues. Ensure that the output capacitor is of sufficient value and ESR, and that the feedback resistors are properly selected. Also, verify that the PCB layout is correct and that there are no noise or interference issues.
