MIC2876-5.0YMT-T5 - Microchip

Description: Switching Voltage Regulators

Download MIC2876-5.0YMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

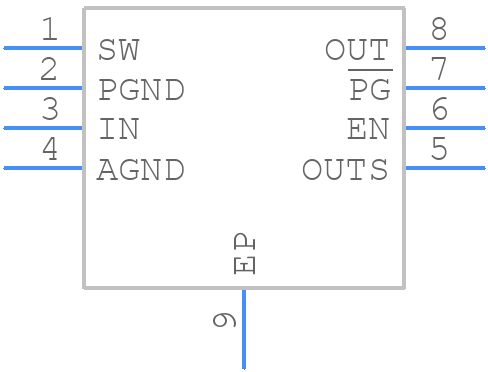

MIC2876-5.0YMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2876-5.0YMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - tdfn(mt)
click to zoom
3D Models
MIC2876-5.0YMT-T5 - Microchip - 3D model - Small Outline No-lead - tdfn(mt)
click to zoom

MIC2876-5.0YMT-T5 Details

  • Manufacturer Part Number:

    MIC2876-5.0YMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-07

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.8 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2876-5.0YMT-T5 Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the IC to dissipate heat efficiently. A minimum of 4-6 thermal vias with a diameter of 0.3-0.5 mm is recommended.
  • To ensure stable output voltage regulation, it is essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor has a low ESR (Equivalent Series Resistance) value.
  • The MIC2876-5.0YMT-T5 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it is recommended to derate the device by 10-15°C to ensure optimal performance and longevity.
  • Yes, the MIC2876-5.0YMT-T5 is suitable for high-reliability applications. It is manufactured using a robust process, and Microchip Technology Inc provides a high level of quality control and testing to ensure the device meets stringent reliability standards.
  • To troubleshoot output voltage deviations or oscillations, check the input voltage, output capacitor selection, and PCB layout. Ensure that the input voltage is within the recommended range, and the output capacitor has a low ESR value. Also, verify that the PCB layout follows the recommended guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2876-5.0YMT-T5 Overview

Use the download button to access the MIC2876-5.0YMT-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC28, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
