Part Image

MIC29501-5.0WU - Microchip

Description: Microchip Technology MIC29501-5.0WU, LDO Regulator, 5A, 5 V, ±2% 5-Pin, D2PAK

Download MIC29501-5.0WU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

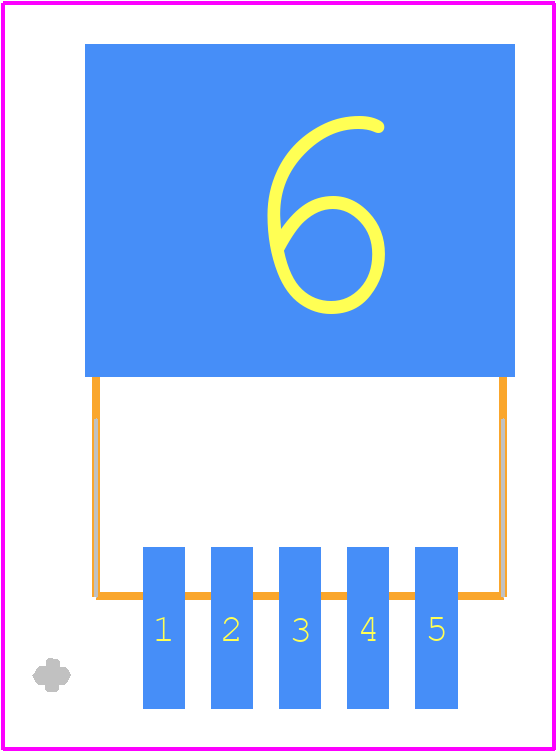

MIC29501-5.0WU - Microchip PCB footprint - Other - Other - 5-Lead TO-263 (D2Pak) Fixed Voltage (U)
click to zoom
3D Models
MIC29501-5.0WU - Microchip  - 3D model - Other - 5-Lead TO-263 (D2Pak) Fixed Voltage (U)
click to zoom

MIC29501-5.0WU Details

  • Manufacturer Part Number:

    MIC29501-5.0WU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-263, 5 PIN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.37 V

  • Input Voltage Absolute-Max:

    60 V

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.363 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.902 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    2%

  • Width:

    8.7805 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC29501-5.0WU Overview

Use the download button to access the MIC29501-5.0WU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC29, or try a keyword search, such as Linear Regulator ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to MIC29501-5.0WU

Showing 0 results

MIC29501-5.0WU Alternates

Showing results

Image Part Number Model
Part Image MIC29501-5.0WU-TR Microchip Technology Inc

5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSSO5
