MIC33050-GYHL-TR - Microchip

Description: Switching Voltage Regulators High Efficiency 600mA Inductor-less Buck Regulator featuring HyperLight Load,

Download MIC33050-GYHL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

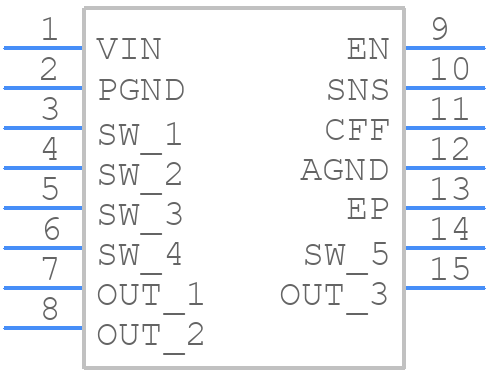

MIC33050-GYHL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC33050-GYHL-TR - Microchip PCB footprint - Other - Other - HDFN33-12LD-PL-1
click to zoom
3D Models
MIC33050-GYHL-TR - Microchip - 3D model - Other - HDFN33-12LD-PL-1
click to zoom

MIC33050-GYHL-TR Details

  • Manufacturer Part Number:

    MIC33050-GYHL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    VDFN-12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    PFM TECHNIQUE IS ALSO POSSIBLE; ALSO OPERATES IN ADJUSTABLE MODE FROM 0.72 TO 3.3 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC33050-GYHL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC33050-GYHL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's also important to consider the specific application and thermal requirements.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence outlined in the datasheet. This typically involves applying a stable input voltage, waiting for the internal voltage regulators to settle, and then configuring the device through the I2C interface.
  • The MIC33050-GYHL-TR's overcurrent protection feature is designed to protect the device from excessive current draw. However, it's important to note that this feature may not trigger immediately, and the device may still be damaged if the overcurrent condition persists. It's essential to design the system to prevent overcurrent conditions from occurring in the first place.
  • To troubleshoot I2C interface issues, start by verifying the I2C bus voltage and clock frequency. Check the datasheet for the recommended I2C bus voltage and clock frequency ranges. Use an oscilloscope to verify the I2C bus signals and ensure they meet the datasheet specifications. Also, check for any bus contention or conflicts with other devices on the I2C bus.
  • In high-temperature applications, it's essential to consider the MIC33050-GYHL-TR's thermal characteristics. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The datasheet provides thermal resistance values and junction-to-ambient thermal resistance values to help with thermal design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC33050-GYHL-TR Overview

Use the download button to access the MIC33050-GYHL-TR schematic symbol, PCB footprint, and 3D model.
