- Stock & Prices $ Price & Stock for MIC4600YML-TR
- Part Number MIC4600YML-TR
- Manufacturer Microchip
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - VQFN
- Released Date Oct 26, 2023
- Last Modified Date Oct 27, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MIC4600YML-TR Details
-
Manufacturer Part Number:
MIC4600YML-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
VQFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
VQFN-16
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
-
Date Of Intro:
2016-07-22
-
Manufacturer:
Microchip Technology Inc
MIC4600YML-TR Frequently Asked Questions (FAQs)
-
For optimal thermal performance, it is recommended to have a solid copper plane on the PCB underneath the MIC4600YML-TR, and to use thermal vias to connect the plane to the device's thermal pad. Additionally, keeping the PCB layer stack-up symmetrical and using a low-thermal-resistance material can help to reduce thermal impedance.
-
To ensure reliable operation at high temperatures, it is essential to follow proper thermal design and layout guidelines, as mentioned earlier. Additionally, it is recommended to derate the device's power handling capability according to the temperature, and to ensure that the device is operated within its specified junction temperature range.
-
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric type. The recommended value is typically in the range of 4.7uF to 10uF, depending on the specific application requirements and input voltage ripple tolerance.
-
To troubleshoot oscillations or instability issues, it is recommended to check the PCB layout and ensure that it meets the recommended guidelines. Additionally, verify that the input and output capacitors are of the correct type and value, and that the device is operated within its specified operating conditions. If the issue persists, it may be necessary to add additional compensation components or to adjust the device's compensation network.
-
The recommended output inductor type is a low-loss, high-frequency inductor, such as a ferrite or iron powder core type. The recommended value depends on the specific application requirements, such as the output voltage, current, and switching frequency. A general guideline is to choose an inductor with a value in the range of 1uH to 10uH, and to ensure that it can handle the maximum output current.
Trust Checks
Community Provided
System Verified
Community Approved
MIC4600YML-TR Overview

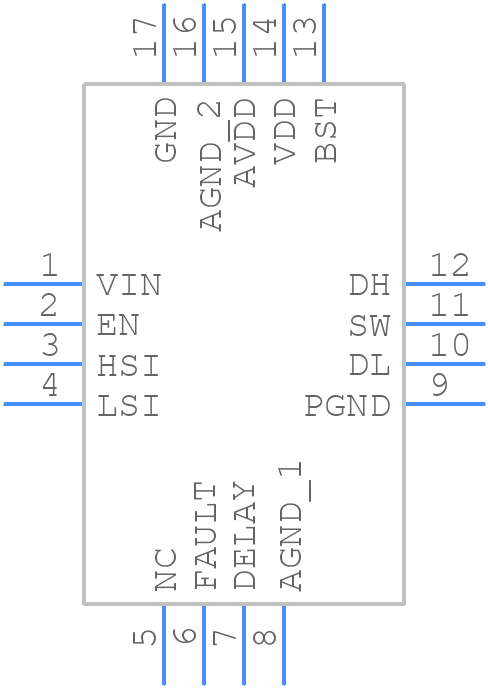

Use the download button to access the MIC4600YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC46,
or try a keyword search, such as MOSFET Drivers
