MIC4606-2YML-TR - Microchip

Description: Gate Drivers 85V Full Bridge FET Driver

Download MIC4606-2YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

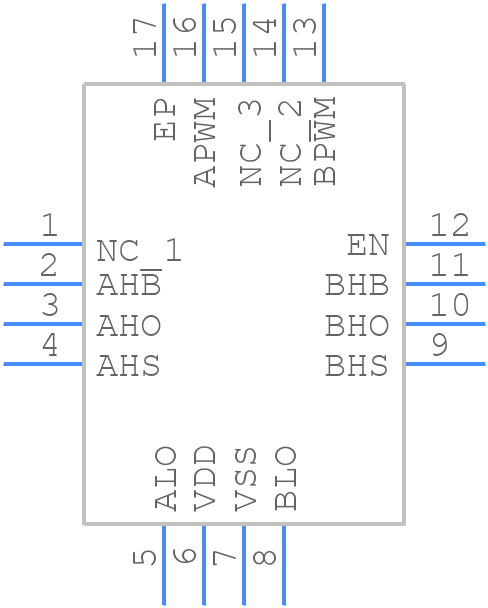

MIC4606-2YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4606-2YML-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - vqfn4*4
click to zoom
3D Models
MIC4606-2YML-TR - Microchip - 3D model - Quad Flat No-Lead - vqfn4*4
click to zoom

MIC4606-2YML-TR Details

  • Manufacturer Part Number:

    MIC4606-2YML-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Interface IC Type:

    FULL BRIDGE BASED MOSFET DRIVER

MIC4606-2YML-TR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MIC4606-2YML-TR is 1.5 MHz.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The maximum input voltage that the MIC4606-2YML-TR can handle is 28V.
  • The output voltage of the MIC4606-2YML-TR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage.
  • The thermal shutdown temperature of the MIC4606-2YML-TR is 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC4606-2YML-TR Overview

Use the download button to access the MIC4606-2YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC46, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to MIC4606-2YML-TR
