MIC4607-2YML-T5 - Microchip

Description: Gate Drivers MOSFET Driver 85V, 3-Phase

Download MIC4607-2YML-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

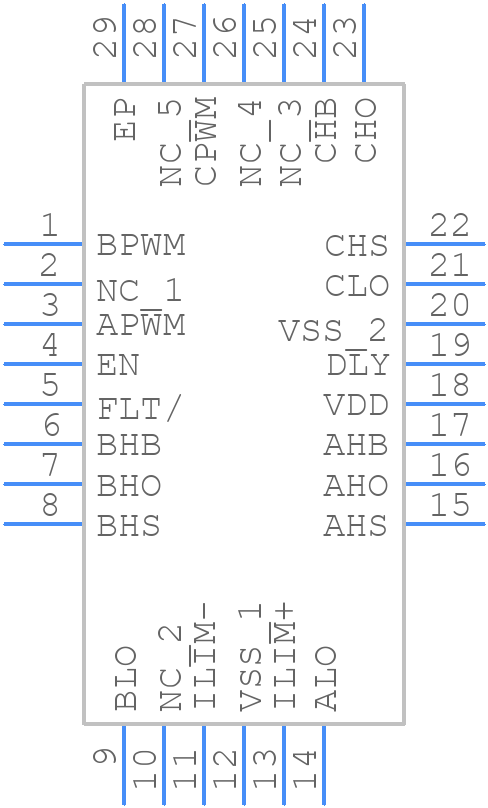

MIC4607-2YML-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4607-2YML-T5 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MIC4607-2YML-T5
click to zoom
3D Models
MIC4607-2YML-T5 - Microchip - 3D model - Quad Flat No-Lead - MIC4607-2YML-T5
click to zoom

MIC4607-2YML-T5 Details

  • Manufacturer Part Number:

    MIC4607-2YML-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

MIC4607-2YML-T5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIC4607-2YML-T5 is -40°C to +125°C.
  • To ensure proper thermal management, make sure to provide a sufficient heat sink, keep the device away from heat sources, and follow the recommended PCB layout and thermal design guidelines.
  • The recommended input capacitor value for the MIC4607-2YML-T5 is 10uF to 22uF, with a voltage rating of at least 25V.
  • Yes, the MIC4607-2YML-T5 is qualified for automotive and high-reliability applications, and meets the requirements of AEC-Q100 Grade 1.
  • To troubleshoot issues with the MIC4607-2YML-T5, check the input and output voltage levels, ensure proper PCB layout and decoupling, and verify that the device is operated within its recommended specifications.
