MIC4802YME-TR - Microchip

Description: LED Lighting Drivers 800mA Single Channel WLED Driver w/ Ultrafast PWM Control

Download MIC4802YME-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

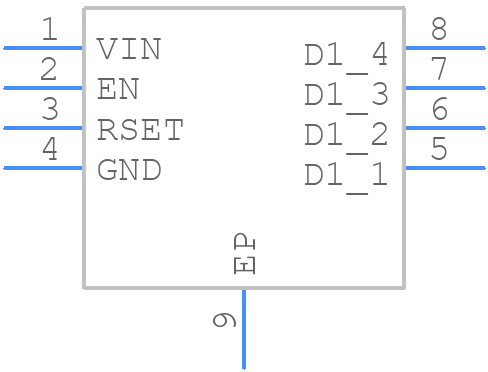

MIC4802YME-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4802YME-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin ePAD SOIC (ME)_2022
click to zoom
3D Models
MIC4802YME-TR - Microchip - 3D model - Small Outline Packages - 8-pin ePAD SOIC (ME)_2022
click to zoom

MIC4802YME-TR Details

  • Manufacturer Part Number:

    MIC4802YME-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HLSOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.93 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Seated Height-Max:

    1.68 mm

  • Supply Current-Max:

    5.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

MIC4802YME-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC4802YME-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have sufficient copper area to dissipate heat.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within its specified temperature range, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within its specified temperature range to maintain reliability and performance.
  • To troubleshoot issues with the MIC4802YME-TR, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check for any signs of overheating, and ensure that the device is properly soldered to the PCB. If issues persist, consult the datasheet and application notes for guidance.
  • The MIC4802YME-TR has built-in ESD protection, but it is still essential to follow proper ESD handling procedures during assembly and testing to prevent damage to the device. Ensure that the PCB is designed with ESD protection in mind, and consider using ESD protection devices if necessary.
