- Part Number MIC4826YMM-TR
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-LEAD MSOP (MM)
- Released Date Feb 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIC4826YMM-TR Details
-
Manufacturer Part Number:
MIC4826YMM-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
8
-
Manufacturer Package Code:
MSOP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
7 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
8
MIC4826YMM-TR Frequently Asked Questions (FAQs)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
-
Ensure that the device is operated within the recommended temperature range (–40°C to +125°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the output current at high temperatures to prevent overheating.
-
Handle the device by the body, not the leads, to prevent damage. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent ESD damage.
-
Check the input voltage, output load, and PCB layout for any issues. Ensure that the output capacitor is of sufficient value and type. Verify that the feedback network is properly connected and compensated. Consult the datasheet and application notes for guidance on stability analysis and compensation techniques.
-
Use a shielded enclosure and ensure good PCB layout practices, such as separating analog and digital grounds, using decoupling capacitors, and minimizing loop areas. Add EMI filters or common-mode chokes as needed to reduce emissions and susceptibility.
Trust Checks
Community Provided
System Verified
Community Approved
MIC4826YMM-TR Overview

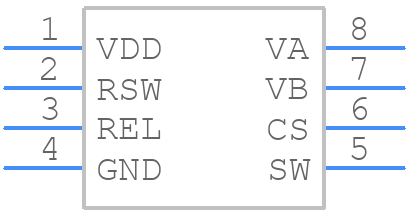

Use the download button to access the MIC4826YMM-TR schematic symbol, PCB footprint, and 3D model.
