MIC502YN - Microchip

Description: Motor / Motion / Ignition Controllers & Drivers Fan Management IC, Dual Input, PWM

Download MIC502YN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

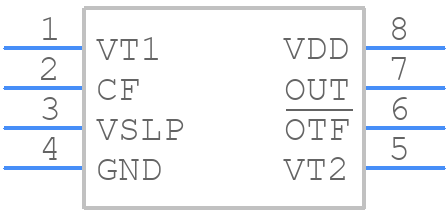

Symbol
MIC502YN - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC502YN - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin Plastic DIP (N)
click to zoom
3D Models
MIC502YN - Microchip - 3D model - Dual-In-Line Packages - 8-Pin Plastic DIP (N)
click to zoom

MIC502YN Details

  • Manufacturer Part Number:

    MIC502YN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, PLASTIC, DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.025 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MIC502YN Frequently Asked Questions (FAQs)

  • The MIC502YN can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and to prevent overheating.
  • To ensure stability, make sure to follow the recommended layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input voltage ripple below 1V. Additionally, adding a small capacitor (around 10nF) between the output and ground can help to reduce oscillations.
  • The MIC502YN can operate with input voltages as low as 7V, but the output voltage regulation may not be as accurate below 9V. For optimal performance, it's recommended to use an input voltage above 10V.
  • The MIC502YN is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and consider using a heat sink or thermal management solution to keep the device temperature below 100°C.
  • The output voltage of the MIC502YN is determined by the resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
