MIC5282-5.0YMM-TR - Microchip

Description: LDO Voltage Regulators 120V/50mA Low Iq, High PSRR LDO

Download MIC5282-5.0YMM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

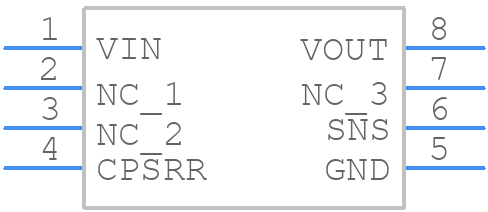

Symbol
MIC5282-5.0YMM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5282-5.0YMM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP (MM)_2021
click to zoom

MIC5282-5.0YMM-TR Details

  • Manufacturer Part Number:

    MIC5282-5.0YMM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    2 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    2.75%

  • Load Regulation-Max:

    0.06%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MIC5282-5.0YMM-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC5282 evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The output capacitor selection depends on the specific application requirements, such as output voltage ripple, transient response, and ESR. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. Microchip also provides a capacitor selection guide in the datasheet.
  • The MIC5282-5.0YMM-TR has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal management design. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • Yes, the MIC5282-5.0YMM-TR is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive applications and is also suitable for other high-reliability applications such as industrial, medical, and aerospace.
  • Microchip provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify the root cause of the issue and take corrective action.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5282-5.0YMM-TR Overview

Use the download button to access the MIC5282-5.0YMM-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52, or try a keyword search, such as Linear Regulator ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
