MIC5282-5.0YMM - Microchip

Description: LDO Voltage Regulators 120V/50mA Low Iq, High PSRR LDO

Download MIC5282-5.0YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

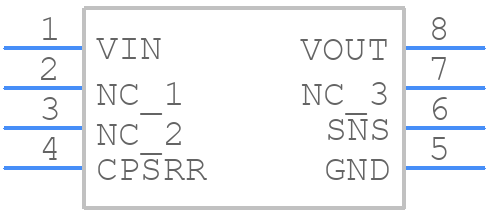

MIC5282-5.0YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5282-5.0YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN MSOP-ren1
click to zoom
3D Models
MIC5282-5.0YMM - Microchip - 3D model - Small Outline Packages - 8-PIN MSOP-ren1
click to zoom

MIC5282-5.0YMM Details

  • Manufacturer Part Number:

    MIC5282-5.0YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    2 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    2.75%

  • Load Regulation-Max:

    0.06%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MIC5282-5.0YMM Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC5282 evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, thermal management, and signal routing to minimize noise and ensure optimal performance.
  • The output capacitor selection depends on the specific application requirements, such as output voltage ripple, transient response, and ESR. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. Microchip also provides a capacitor selection guide in the MIC5282 datasheet.
  • The MIC5282-5.0YMM is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for specific guidance on temperature-related considerations.
  • Yes, the MIC5282-5.0YMM is suitable for high-reliability and automotive applications. Microchip provides additional documentation and support for these applications, including AEC-Q100 qualification, PPAP documentation, and failure analysis reports. Contact Microchip's technical support for more information.
  • Microchip provides a troubleshooting guide in the MIC5282 datasheet and application notes. Common issues can often be resolved by checking the PCB layout, component selection, and input voltage quality. For more complex issues, contact Microchip's technical support for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC5282-5.0YMM Overview

Use the download button to access the MIC5282-5.0YMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC52, or try a keyword search, such as Linear Regulator ICs
