MIC5282YMME - Microchip

Description: LDO Voltage Regulators 120V/50mA Low Iq, High PSRR LDO

Download MIC5282YMME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

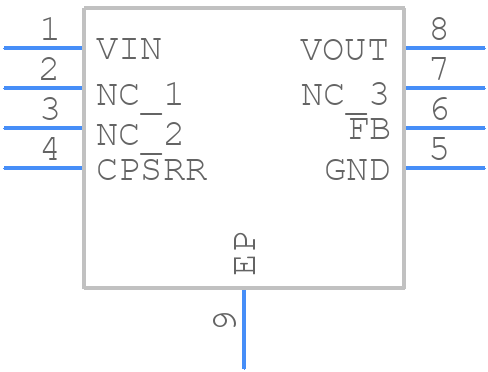

MIC5282YMME - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5282YMME - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Exposed Pad (ePad) MSOP
click to zoom
3D Models
MIC5282YMME - Microchip - 3D model - Small Outline Packages - 8-Pin Exposed Pad (ePad) MSOP
click to zoom

MIC5282YMME Details

  • Manufacturer Part Number:

    MIC5282YMME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    15

MIC5282YMME Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the package, and a heat sink if possible. The datasheet provides some guidelines, but a more detailed application note is available on Microchip's website.
  • In addition to following the recommended PCB layout, ensure that the device is operated within its specified temperature range (–40°C to +125°C). Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The datasheet specifies the maximum current rating for each output pin. However, it's essential to consider the total current drawn from the device and ensure it does not exceed the recommended maximum current rating to prevent overheating.
  • Start by reviewing the datasheet and application notes for common pitfalls and troubleshooting guidelines. Use oscilloscopes and logic analyzers to debug the circuit, and consider using Microchip's development boards and software tools for more in-depth analysis.
  • Yes, the MIC5282YMME is a high-frequency device, and proper EMI/EMC design practices are crucial. Ensure proper shielding, use of bypass capacitors, and follow the recommended PCB layout guidelines to minimize EMI/EMC issues.
