MIC5283-3.3YML-TR - Microchip

Description: Linear Voltage Regulators 120V/150mA Ultra-Low IQ High-PSRR Linear Regulator

Download MIC5283-3.3YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

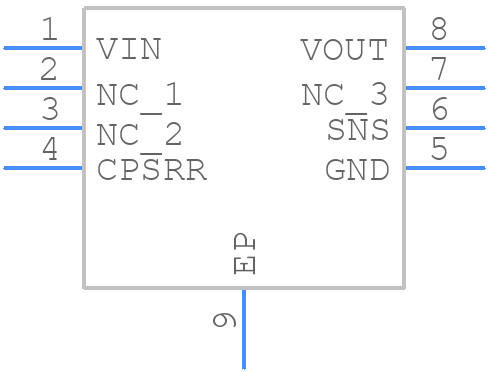

MIC5283-3.3YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5283-3.3YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pin ePad 3mm x 3mm MLF (ML)
click to zoom
3D Models
MIC5283-3.3YML-TR - Microchip - 3D model - Small Outline No-lead - 8-Pin ePad 3mm x 3mm MLF (ML)
click to zoom

MIC5283-3.3YML-TR Details

  • Manufacturer Part Number:

    MIC5283-3.3YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    2.8 V

  • Dropout Voltage1-Nom:

    1.8 V

  • Input Voltage Absolute-Max:

    125 V

  • Input Voltage-Max:

    120 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    1.815%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.465 V

  • Output Voltage1-Min:

    3.135 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    5%

  • Width:

    3 mm

MIC5283-3.3YML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the MIC5283-3.3YML-TR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if necessary.
  • The MIC5283-3.3YML-TR is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to consult the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
  • Yes, the MIC5283-3.3YML-TR is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's recommended to consult the datasheet and the AEC-Q100 qualification document for specific details on the device's performance and reliability in these applications.
  • To troubleshoot issues with the MIC5283-3.3YML-TR, start by checking the input and output voltages, and ensuring that the device is properly powered. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to check for oscillations or other anomalies on the input and output. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
