MIC5392-PMYMT-TR - Microchip

Description: LDO Voltage Regulators General Purpose Dual 150mA LDO

Download MIC5392-PMYMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

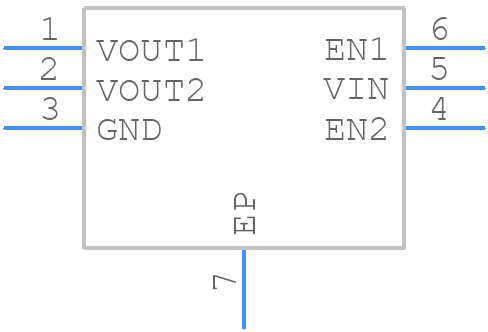

Symbol
MIC5392-PMYMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC5392-PMYMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MIC5364-3.3YMT-TR
click to zoom
3D Models
MIC5392-PMYMT-TR - Microchip - 3D model - Small Outline No-lead - MIC5364-3.3YMT-TR
click to zoom

MIC5392-PMYMT-TR Details

  • Manufacturer Part Number:

    MIC5392-PMYMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    25

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.31 V

  • Dropout Voltage1-Nom:

    0.155 V

  • Dropout Voltage2-Max:

    0.31 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.0135%

  • Load Regulation-Max(%):

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Current2-Max:

    0.15 A

  • Output Voltage1-Max:

    3.09 V

  • Output Voltage1-Min:

    2.91 V

  • Output Voltage1-Nom:

    3 V

  • Output Voltage2-Max:

    2.884 V

  • Output Voltage2-Min:

    2.716 V

  • Output Voltage2-Nom:

    2.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC5,.047,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    3%

  • Width:

    1.2 mm

MIC5392-PMYMT-TR Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid copper plane underneath the package, and to use thermal vias to connect the plane to the thermal pad on the bottom of the package. Additionally, keeping the PCB layers as thin as possible and using a high-thermal-conductivity PCB material can also help to improve thermal performance.
  • To ensure reliable operation at high temperatures, it is recommended to follow proper PCB design and layout guidelines, use a high-reliability capacitor, and ensure that the device is operated within its specified temperature range. Additionally, using a thermal interface material (TIM) between the device and the heat sink can also help to improve thermal performance.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, and the recommended value is 10uF to 22uF. However, the optimal input capacitor value may vary depending on the specific application and operating conditions.
  • The output voltage ripple can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The maximum allowable input voltage for the MIC5392-PMYMT-TR is 6.5V. Exceeding this voltage may cause damage to the device or affect its reliability.
