MIC7400YFL-TR - Microchip

Description: Power Management Multi-Channel IC 2.4V to 5.5V 36-Pin FQFN EP T/R

Download MIC7400YFL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

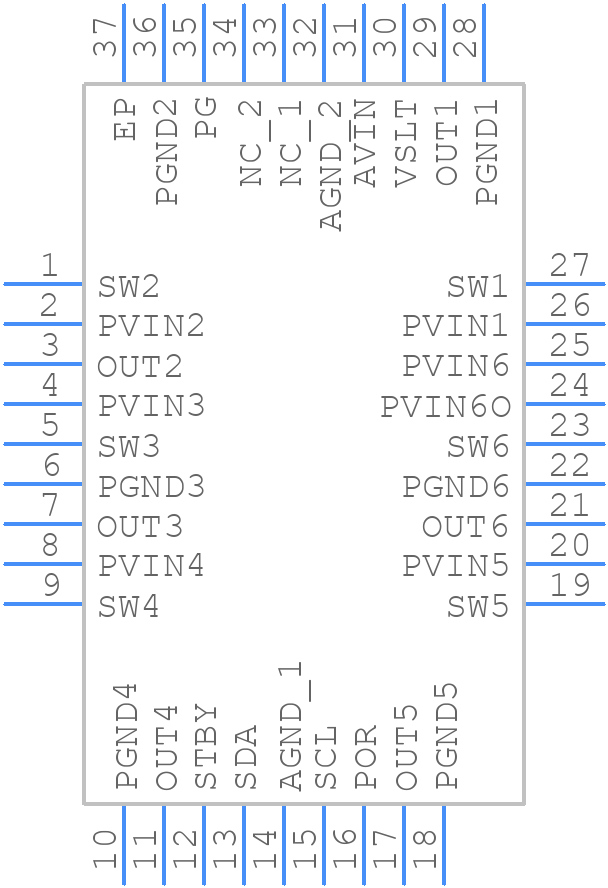

MIC7400YFL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC7400YFL-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-LEAD QFN
click to zoom
3D Models
MIC7400YFL-TR - Microchip - 3D model - Quad Flat No-Lead - 36-LEAD QFN
click to zoom

MIC7400YFL-TR Details

  • Manufacturer Part Number:

    MIC7400YFL-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    VQFN-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.18SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.25V

  • Width:

    4.5 mm

MIC7400YFL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC7400YFL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have sufficient copper area to dissipate heat.
  • To ensure reliable operation at high temperatures, ensure that the MIC7400YFL-TR is operated within its specified temperature range, and that the device is properly cooled. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within its specified temperature range to prevent overheating.
  • To troubleshoot issues with the MIC7400YFL-TR, start by checking the power supply voltage, input signals, and output loads. Verify that the device is properly connected and configured. If issues persist, consult the datasheet and application notes for guidance, or contact Microchip technical support.
  • The MIC7400YFL-TR is a sensitive electronic device and requires proper ESD protection and handling precautions. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Store the device in an anti-static bag or container when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC7400YFL-TR Overview

Use the download button to access the MIC7400YFL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC74, or try a keyword search, such as Power Management Circuits
