MIC79050-4.2YM - Microchip

Description: Battery Charger Li-Ion Pack 500mA 4.2V 8-Pin SOIC N

Download MIC79050-4.2YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

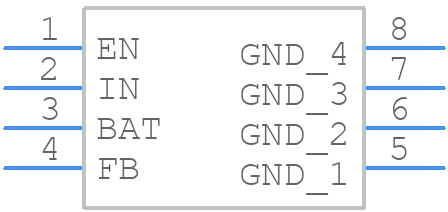

MIC79050-4.2YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC79050-4.2YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
MIC79050-4.2YM - Microchip - 3D model - Small Outline Packages - (SOIC)
click to zoom

MIC79050-4.2YM Details

  • Manufacturer Part Number:

    MIC79050-4.2YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

MIC79050-4.2YM Frequently Asked Questions (FAQs)

  • The MIC79050-4.2YM can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and keep the input and output capacitors close to the device. Also, avoid using long traces and minimize the loop area of the feedback network.
  • The MIC79050-4.2YM can operate with input voltages as low as 2.7V, but the output voltage regulation may not be guaranteed below 3.5V. For optimal performance, it's recommended to keep the input voltage above 4V.
  • The MIC79050-4.2YM is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage of the MIC79050-4.2YM is fixed at 4.2V, but it can be adjusted using an external resistor divider network. The output voltage can be calculated using the formula: Vout = 4.2V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC79050-4.2YM Overview

Use the download button to access the MIC79050-4.2YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC79, or try a keyword search, such as Power Management Circuits
