MIC826MYMT-TR - Microchip

Description: Supervisory Circuits Voltage Supervisor Watchdog/Dual Output

Download MIC826MYMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

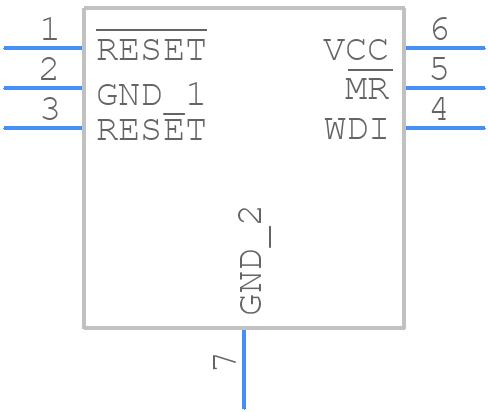

MIC826MYMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC826MYMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 - pin 1.6 mm x 1.6 mm 1TDFN
click to zoom
3D Models
MIC826MYMT-TR - Microchip - 3D model - Small Outline No-lead - 6 - pin 1.6 mm x 1.6 mm 1TDFN
click to zoom

MIC826MYMT-TR Details

  • Manufacturer Part Number:

    MIC826MYMT-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.014 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.375V

  • Width:

    1.6 mm

MIC826MYMT-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC826MYMT-TR evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for thermal vias, decoupling capacitors, and signal routing.
  • To optimize thermal performance, ensure good thermal conduction by using thermal vias under the device, and a solid copper pour on the top and bottom layers of the PCB. Also, use a heat sink or thermal interface material (TIM) to improve heat dissipation.
  • The MIC826MYMT-TR has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed +150°C. Ensure proper thermal design and heat dissipation to prevent overheating.
  • Choose input capacitors with a low equivalent series resistance (ESR) and a high ripple current rating. A minimum capacitance of 10uF is recommended, with a voltage rating of at least 2x the input voltage. X7R or X5R dielectric capacitors are suitable for most applications.
  • The recommended output capacitor value depends on the output voltage and current requirements. A minimum capacitance of 10uF is recommended, with a voltage rating of at least 1.5x the output voltage. A larger capacitance may be required for high-current or low-dropout applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC826MYMT-TR Overview

Use the download button to access the MIC826MYMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC82, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
