MIC826ZYMT-TR - Microchip

Description: Supervisory Circuits .5% Single Voltage Supervisor

Download MIC826ZYMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

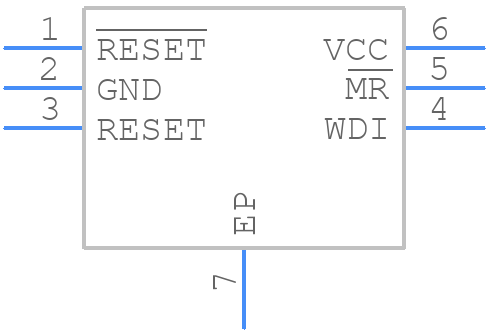

MIC826ZYMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC826ZYMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-pin tdfn
click to zoom
3D Models
MIC826ZYMT-TR - Microchip - 3D model - Small Outline No-lead - 6-pin tdfn
click to zoom

MIC826ZYMT-TR Details

  • Manufacturer Part Number:

    MIC826ZYMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.0084 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    2.38 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.315V

  • Width:

    1.6 mm

MIC826ZYMT-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC826ZYMT-TR evaluation board documentation, which includes a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Consult the datasheet and application notes for more specific guidance.
  • The maximum ambient temperature for MIC826ZYMT-TR operation is 85°C, as specified in the datasheet. However, the device can operate up to 105°C with derating, but this may affect its reliability and lifespan.
  • Yes, MIC826ZYMT-TR is AEC-Q100 qualified, making it suitable for automotive applications. Additionally, it meets various high-reliability standards, such as ISO 26262 and IEC 61508. However, ensure you follow the recommended design and testing guidelines for your specific application.
  • Common causes of oscillation or instability include incorrect input capacitor selection, inadequate PCB layout, or insufficient output capacitance. Check the datasheet and application notes for troubleshooting guidelines, and consider using Microchip's Power Designer tool to simulate and optimize your design.
