MIC94067YML-TR - Microchip

Description: Power Switch ICs - Power Distribution High Side Power Switch

Download MIC94067YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

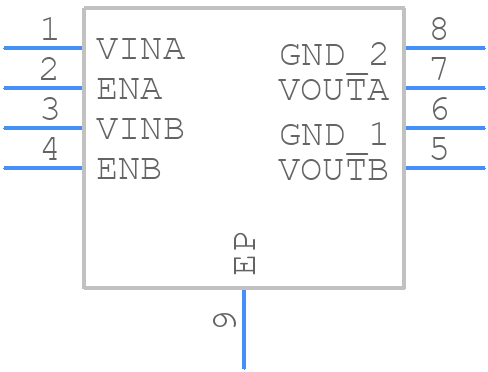

MIC94067YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94067YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 2x2 mm MLF1
click to zoom
3D Models
MIC94067YML-TR - Microchip - 3D model - Small Outline No-lead - 2x2 mm MLF1
click to zoom

MIC94067YML-TR Details

  • Manufacturer Part Number:

    MIC94067YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON, SOLCC8,.08,20

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MIC94067YML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation across the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a suitable thermal management strategy, and ensure that the device is operated within its specified voltage and current ratings.
  • For EMI and EMC compliance, it's crucial to follow proper PCB design and layout guidelines, use shielding and filtering techniques, and ensure that the device is operated within its specified frequency range. Additionally, using a common-mode choke and a ferrite bead can help reduce EMI emissions.
  • To troubleshoot issues with the MIC94067YML-TR, start by checking the power supply voltage, input/output signals, and PCB layout. Use an oscilloscope to verify signal integrity and check for any signs of overheating or electrical overstress. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Operating the MIC94067YML-TR at high ambient temperatures can reduce its reliability and lifespan. It's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to maintain a safe junction temperature.
