MIC94068YML-TR - Microchip

Description: Power Switch ICs - Power Distribution High Side Power Switch

Download MIC94068YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

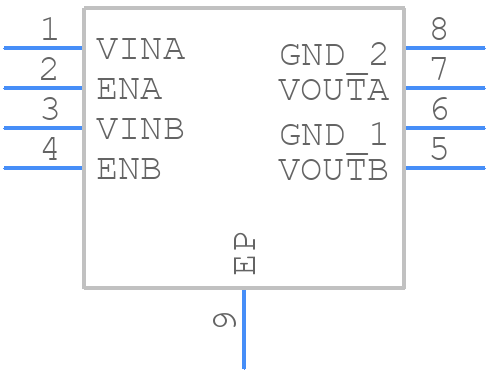

MIC94068YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94068YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 2x2 mm MLF
click to zoom
3D Models
MIC94068YML-TR - Microchip - 3D model - Small Outline No-lead - 2x2 mm MLF
click to zoom

MIC94068YML-TR Details

  • Manufacturer Part Number:

    MIC94068YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH
