A good PCB layout for optimal thermal performance involves placing the MIC95410YFL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
The MIC95410YFL-TR's quiescent current (Iq) affects battery life. To minimize the impact, consider using power-saving modes, optimizing the system's power architecture, and selecting the right battery type and capacity for the application.
To troubleshoot issues with the MIC95410YFL-TR's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for troubleshooting guidelines.
To minimize EMI and EMC issues with the MIC95410YFL-TR, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and ensure that the device is properly decoupled and bypassed. Consult the datasheet and relevant application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC95410YFL-TR Overview

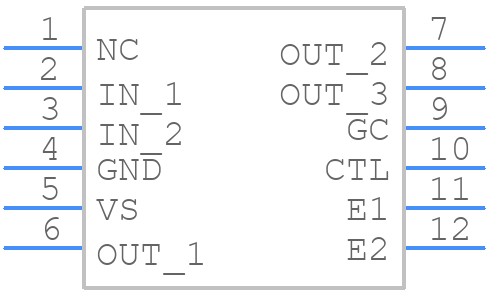

Use the download button to access the MIC95410YFL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC95,
or try a keyword search, such as Power Management Circuits
