MICRF112YMU-TR - Microchip

Description: RF Transmitter 300MHz to 450MHz ASK/FSK Transmitter

Download MICRF112YMU-TR Model

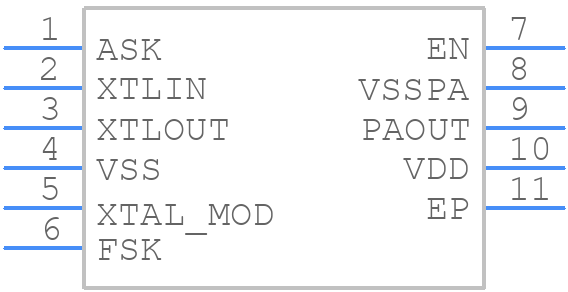

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MICRF112YMU-TR - Microchip PCB footprint - Other - Other - MICRF112YMU-TR-1
click to zoom
3D Models
MICRF112YMU-TR - Microchip  - 3D model - Other - MICRF112YMU-TR-1
click to zoom

MICRF112YMU-TR Details

  • Manufacturer Part Number:

    MICRF112YMU-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    UDFN-10

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    LCC10,.8SQ

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold Flash (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MICRF112YMU-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal loss.
  • Use a reliable communication protocol such as SPI or UART, and ensure that the clock frequency and data transmission rate are within the specified limits. Also, use a buffer or FIFO to handle data transmission and reception.
  • The maximum operating temperature range for MICRF112YMU-TR is -40°C to +125°C. However, it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • Use shielding, grounding, and filtering techniques to minimize EMI and RFI. Also, ensure that the MICRF112YMU-TR is placed away from other noise-generating components and that the PCB layout is optimized for minimal radiation.
  • Use a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power pins of the MICRF112YMU-TR. This will help to filter out noise and ensure stable operation.
