MICRF218AYQS - Microchip

Description: MICREL SEMICONDUCTOR - MICRF218AYQS - RECEIVER, 3.3V, 300~450MHZ, 16QSOP

Download MICRF218AYQS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

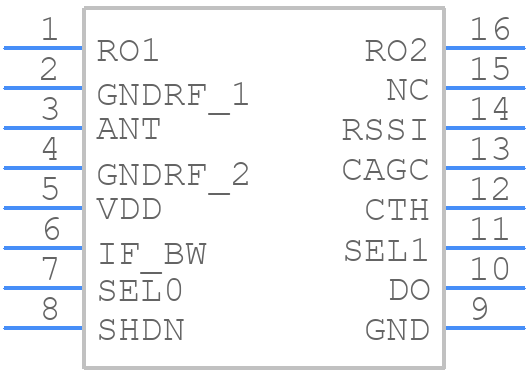

MICRF218AYQS - Microchip - PCB symbol
click to zoom
PCB Footprints
MICRF218AYQS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP
click to zoom
3D Models
MICRF218AYQS - Microchip - 3D model - Small Outline Packages - 16-QSOP
click to zoom

MICRF218AYQS Details

  • Manufacturer Part Number:

    MICRF218AYQS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    QSOP-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

MICRF218AYQS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MICRF218AYQS evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • To minimize power consumption, configure the MICRF218AYQS to use the lowest possible frequency and output power, and enable the power-saving features such as the sleep mode and automatic power control. Additionally, optimize the transmit and receive duty cycles to reduce power consumption.
  • The maximum data rate of MICRF218AYQS is 2 Mbps, but the actual data rate may be limited by the system design, antenna performance, and operating conditions. It's recommended to perform system-level testing to determine the optimal data rate for a specific application.
  • To ensure reliable data transmission, implement error-checking and correction mechanisms such as CRC and FEC, and use a robust modulation scheme like OQPSK or GFSK. Additionally, optimize the transmit power, data rate, and antenna design to minimize errors and ensure reliable communication.
  • Yes, MICRF218AYQS can be used with an external antenna. However, it's essential to ensure that the antenna is designed and matched to the operating frequency and impedance of the MICRF218AYQS to achieve optimal performance and minimize signal loss.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MICRF218AYQS Overview

Use the download button to access the MICRF218AYQS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF, or try a keyword search, such as Other Consumer ICs
