MICRF220AYQS - Microchip

Description: Microchip MICRF220AYQS ASK RF Receiver Chip, 3 → 3.6 V, 16-Pin QSOP

Download MICRF220AYQS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

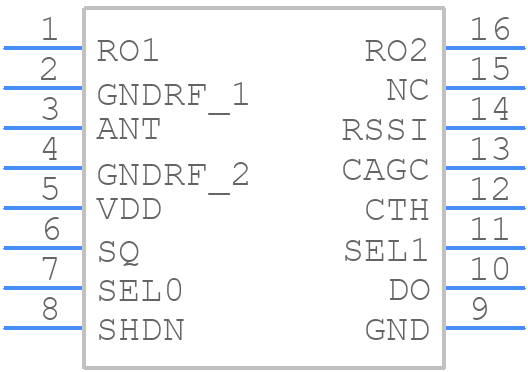

MICRF220AYQS - Microchip - PCB symbol
click to zoom
PCB Footprints
MICRF220AYQS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP
click to zoom
3D Models
MICRF220AYQS - Microchip - 3D model - Small Outline Packages - 16-QSOP
click to zoom

MICRF220AYQS Details

  • Manufacturer Part Number:

    MICRF220AYQS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    QSOP-16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

MICRF220AYQS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from noisy digital signals. Use a common mode filter or a Pi-filter to reduce EMI.
  • Use a reliable communication protocol like SPI or UART, and ensure proper synchronization and data validation. Implement error detection and correction mechanisms, such as checksums or CRC, to ensure data integrity.
  • The maximum transmission distance depends on the environment, antenna design, and transmission power. In ideal conditions, the MICRF220AYQS can achieve a range of up to 100 meters. However, this can be affected by obstacles, interference, and antenna design.
  • Use a quarter-wavelength monopole antenna or a dipole antenna with a length of around 17.5 cm for optimal performance. Ensure the antenna is properly matched to the MICRF220AYQS's output impedance (50 ohms) and is placed at least 10 mm away from the PCB.
  • The power consumption of MICRF220AYQS varies depending on the operating mode. In transmit mode, the current consumption is around 18 mA, while in receive mode it's around 12 mA. In standby mode, the current consumption is around 0.5 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MICRF220AYQS Overview

Use the download button to access the MICRF220AYQS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF, or try a keyword search, such as Other Consumer ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
