- Part Number MICRF221AYQS-TR
- Manufacturer Microchip
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MICRF221AYQS-TR
- Released Date Nov 8, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MICRF221AYQS-TR Details
-
Manufacturer Part Number:
MICRF221AYQS-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
QSOP-16
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
19 Weeks
-
Manufacturer:
Microchip Technology Inc
MICRF221AYQS-TR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from noisy digital signals. Use a common mode choke or a ferrite bead to filter the power supply.
-
Implement a robust error correction mechanism, such as CRC or checksum, to detect and correct errors. Use a spread spectrum modulation scheme, like frequency hopping or direct sequence spread spectrum, to minimize interference.
-
The maximum transmission distance depends on the environment, antenna design, and transmission power. In ideal conditions, the MICRF221AYQS-TR can achieve a range of up to 100 meters. However, this can be affected by obstacles, interference, and antenna orientation.
-
Use the device's built-in power-saving features, such as the sleep mode, to reduce power consumption. Optimize the transmission protocol to minimize the number of transmissions and use a low-power oscillator. Consider using a low-power microcontroller to control the MICRF221AYQS-TR.
-
The antenna design should consider the operating frequency, impedance matching, and radiation pattern. A quarter-wave monopole or a dipole antenna with a 50-ohm impedance is recommended. Ensure the antenna is properly matched to the MICRF221AYQS-TR's output impedance.
Trust Checks
Community Provided
System Verified
Community Approved
MICRF221AYQS-TR Overview

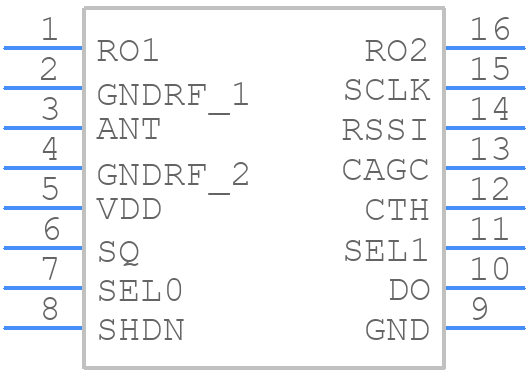

Use the download button to access the MICRF221AYQS-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF,
or try a keyword search, such as Other Consumer ICs
