MICRF229YQS-TR - Microchip

Description: 400MHZ TO 450MHZ ASK/OOK RECEIVER WITH AUTO-POLL AND RSSI

Download MICRF229YQS-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

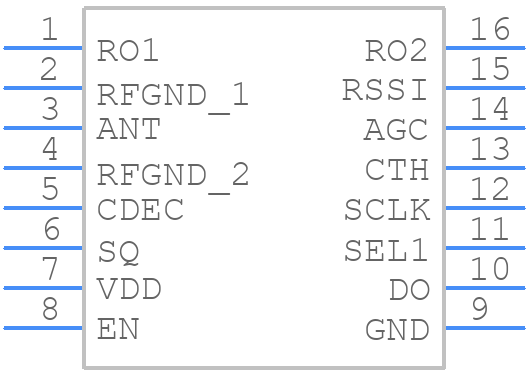

Symbol
MICRF229YQS-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MICRF229YQS-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-PIN 4.9MMX6.0MM QSOP [QS]
click to zoom
3D Models
MICRF229YQS-TR - Microchip - 3D model - Small Outline Packages - 16-PIN 4.9MMX6.0MM QSOP [QS]
click to zoom

MICRF229YQS-TR Details

  • Manufacturer Part Number:

    MICRF229YQS-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.90 X 6 MM, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    QSOP-16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

MICRF229YQS-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Implement a robust error correction mechanism, such as CRC and retransmission, and consider using frequency hopping or spread spectrum techniques to minimize interference.
  • The maximum transmit power is dependent on the antenna design and regulatory requirements. However, the MICRF229YQS-TR can deliver up to +20 dBm (100 mW) of transmit power with a suitable antenna and power amplifier.
  • Use the device's low-power modes, such as sleep mode, and optimize the transmit and receive duty cycles. Additionally, consider using a low-power microcontroller and optimizing the system's overall power budget.
  • A quarter-wave monopole antenna or a chip antenna with a 50-ohm impedance match is recommended. The antenna design should be optimized for the specific frequency band and application requirements.
