Microchip provides a recommended PCB layout in the MICRF230YQS-TR evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The MICRF230YQS-TR has several power-saving features, including a low-power mode and a shutdown mode. To configure the device for low-power operation, refer to the 'Power Management' section of the datasheet, which provides details on how to enable these features through register settings and pin configurations.
The MICRF230YQS-TR supports data rates up to 2 Mbps, but the actual achievable data rate depends on the specific application, transmission distance, and environmental conditions. In general, the device can support high data rates in short-range applications, but the data rate may need to be reduced for longer-range applications to ensure reliable communication.
The MICRF230YQS-TR has two antenna pins, which can be used to implement antenna diversity. To implement antenna diversity, connect two antennas to the device, one to each antenna pin, and use the device's built-in antenna diversity feature to switch between the two antennas based on signal strength. Refer to the 'Antenna Diversity' section of the datasheet for more information.
The MICRF230YQS-TR has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications. However, the device's performance may vary at extreme temperatures, so it's essential to consult the datasheet for specific temperature-related performance characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MICRF230YQS-TR Overview

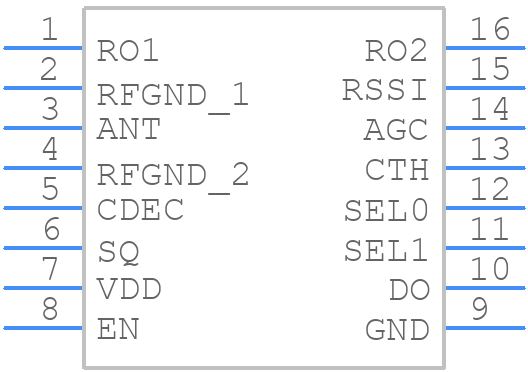

Use the download button to access the MICRF230YQS-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF,
or try a keyword search, such as Other Telecom ICs
