MICRF230YQS - Microchip

Description: RF Receiver ASK/OOK Receiver 400-450MHz

Download MICRF230YQS Model

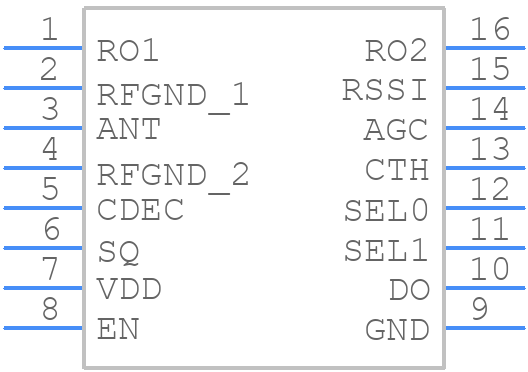

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MICRF230YQS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - QSOP16 PACKAGE (QS)
click to zoom
3D Models
MICRF230YQS - Microchip  - 3D model - Small Outline Packages - QSOP16 PACKAGE (QS)
click to zoom

MICRF230YQS Details

  • Manufacturer Part Number:

    MICRF230YQS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    QSOP-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

MICRF230YQS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance-controlled lines. Avoid vias and right-angle bends in the RF path.
  • Use a combination of techniques such as frequency hopping, spread spectrum, and error correction (e.g., FEC) to mitigate interference. Implement a robust protocol with retries and acknowledgments to ensure reliable data transfer.
  • The maximum transmission power is limited by regulatory bodies such as the FCC (USA) and ETSI (Europe). Typically, the maximum allowed power is +20 dBm (100 mW) for the 2.4 GHz band. However, it's essential to check the specific regulations for your region and application.
  • Use a 1/4 wavelength monopole antenna or a dipole antenna with a 50-ohm impedance. Optimize the antenna design using simulation tools or empirical methods to achieve the best radiation pattern and impedance matching.
  • The recommended crystal oscillator frequency is 26 MHz, which is the fundamental frequency for the 2.4 GHz band. This frequency provides the best trade-off between frequency accuracy and power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MICRF230YQS Overview

Use the download button to access the MICRF230YQS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF, or try a keyword search, such as Other Telecom ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
