Description:High-density microcells; Optimized for high-performance timing applications, such as ToF-PET; Ultra-low dark count rates of 50 kHz/mm2 typical; J-Series sensors feature ON Semiconductor's unique 'fast output' terminal; Exceptional breakdown voltage uniformity of ±250 mV; Temperature stability of 21.5 mV/°C; 3 mm, 4 mm and 6 mm sensor sizes; Available in a reflow solder compatible TSV chip-scale package; Bias voltage of <30 V
For optimal performance, it is recommended to follow the PCB layout guidelines provided in the application note AN5191. Additionally, ensure good thermal management by providing a heat sink or thermal pad under the device, and using thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines provided in the datasheet. Also, consider using a thermally conductive material for the PCB and ensuring good airflow around the device.
The MICROFJ-30020-TSV-TR1 has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and handling the device by the body rather than the leads.
Yes, the MICROFJ-30020-TSV-TR1 is suitable for high-reliability and automotive applications. However, it is essential to follow the recommended operating conditions, and ensure that the device is properly qualified and validated for the specific application.
Follow the recommended soldering and assembly techniques provided in the application note AN5233. Ensure that the device is handled and stored properly to prevent damage, and use a soldering iron with a temperature range of 250°C to 260°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MICROFJ-30020-TSV-TR1 Overview

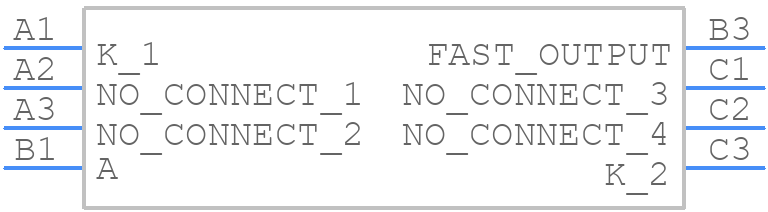

Use the download button to access the MICROFJ-30020-TSV-TR1 schematic symbol, PCB footprint, and 3D model.
