MID400SD - onsemi

Description: Obsolete - 8-Pin DIP AC Line Monitor Logic Output Optocoupler

Download MID400SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

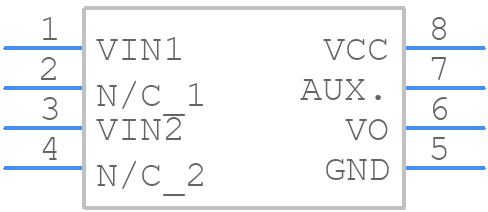

Symbol
MID400SD - onsemi - PCB symbol
click to zoom
PCB Footprints
MID400SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MID400SD-1
click to zoom

MID400SD Details

  • Manufacturer Part Number:

    MID400SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED, TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.03 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.115 W

  • Response Time-Nom:

    0.001 ns

  • Supply Voltage-Nom:

    7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MID400SD Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize EMI.
  • Ensure good thermal management by providing adequate heat sinking and airflow. Derate the output power according to the temperature derating curve in the datasheet.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22uF is recommended. The capacitor should be placed close to the VIN pin.
  • Use a TVS diode or a transient voltage suppressor (TVS) in parallel with the input capacitor to protect against voltage transients and surges.
  • The maximum allowed output capacitance is 10uF. Exceeding this value may cause instability or oscillations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MID400SD Overview

Use the download button to access the MID400SD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MID40, or try a keyword search, such as Optocoupler
