MIMX8MM5DVTLZCA - NXP

Description: with fast, free shipping on qualifying orders. View datasheets, stock and pricing, or find other Application Processors and SOC.

Download MIMX8MM5DVTLZCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

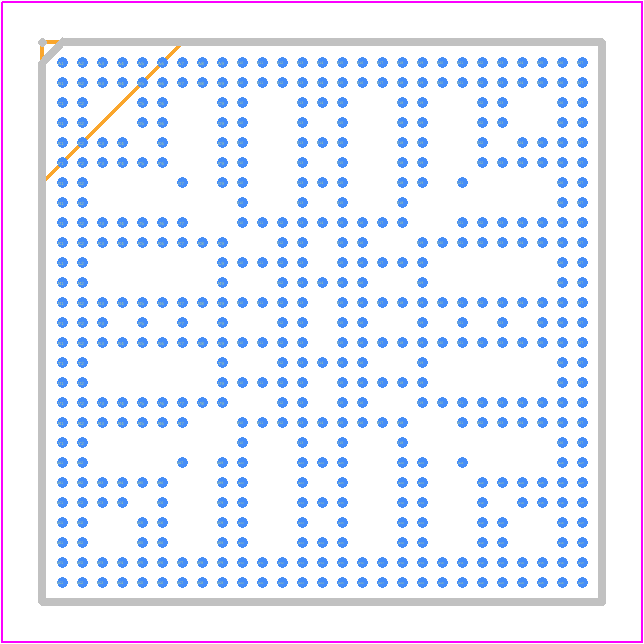

MIMX8MM5DVTLZCA - NXP PCB footprint - BGA - BGA - SOT-1967
click to zoom
3D Models
MIMX8MM5DVTLZCA - NXP  - 3D model - BGA - SOT-1967
click to zoom

MIMX8MM5DVTLZCA Details

  • Manufacturer Part Number:

    MIMX8MM5DVTLZCA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-486

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PBGA-B486

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    486

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA486,27X27,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MM5DVTLZCA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MIMX8MM5DVTLZCA is -40°C to 85°C, with a junction temperature of up to 105°C.
  • The DDR memory interface on the MIMX8MM5DVTLZCA can be configured using the DDR Controller (DDRC) registers. Refer to the i.MX8M Mini Applications Processor Reference Manual for detailed information on configuring the DDR interface.
  • The maximum clock frequency supported by the MIMX8MM5DVTLZCA is up to 1.6 GHz for the Cortex-A53 cores and up to 650 MHz for the Cortex-M4 core.
  • Secure boot on the MIMX8MM5DVTLZCA can be implemented using the Boot ROM and the High Assurance Boot (HAB) mechanism. Refer to the i.MX8M Mini Applications Processor Reference Manual and the NXP Secure Boot documentation for detailed information.
  • The power consumption of the MIMX8MM5DVTLZCA varies depending on the operating frequency, voltage, and usage scenario. Refer to the i.MX8M Mini Applications Processor Data Sheet for typical power consumption values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
