MIMX8MN1CVTIZAA - NXP

Description: NXP - MIMX8MN1CVTIZAA - MPU, 32BIT, 1.4GHZ, -40 TO 105DEG C ROHS COMPLIANT: YES

Download MIMX8MN1CVTIZAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX8MN1CVTIZAA - NXP - PCB symbol
click to zoom
PCB Footprints

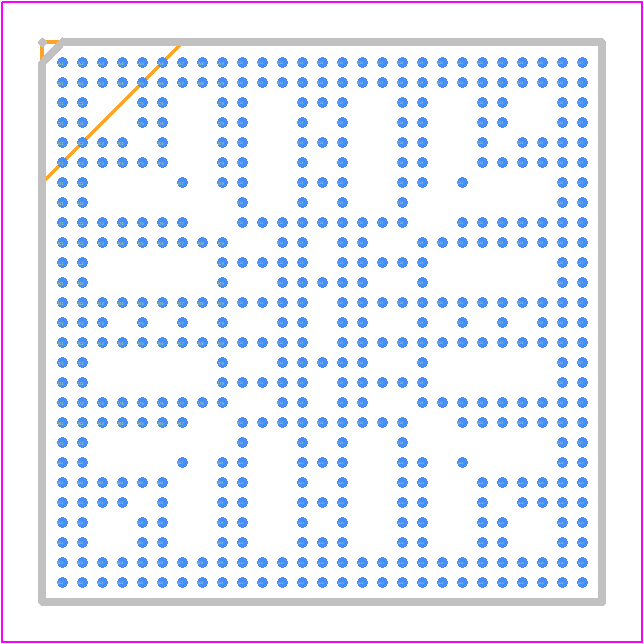

MIMX8MN1CVTIZAA - NXP PCB footprint - BGA - BGA - LFBGA486
click to zoom
3D Models
MIMX8MN1CVTIZAA - NXP - 3D model - BGA - LFBGA486
click to zoom

MIMX8MN1CVTIZAA Details

  • Manufacturer Part Number:

    MIMX8MN1CVTIZAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-486

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-11-22

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B486

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    486

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA486,27X27,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max:

    1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MN1CVTIZAA Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the other power rails. This ensures that the internal voltage regulators are powered up in the correct order.
  • The DDR memory interface on the MIMX8MN1CVTIZAA can be configured using the DDR Controller (DDRC) registers. The DDRC is programmed using the Chip Select (CS) pins, and the memory timing parameters are set using the Memory Timing Register (MTR).
  • The maximum operating frequency of the MIMX8MN1CVTIZAA is 1.6 GHz. However, the actual operating frequency may vary depending on the specific use case and thermal conditions.
  • Secure boot on the MIMX8MN1CVTIZAA can be implemented using the Boot ROM and the Secure Boot Key (SBK) registers. The Boot ROM verifies the authenticity of the boot loader and kernel images using digital signatures, and the SBK registers store the public key used for verification.
  • The MIMX8MN1CVTIZAA has several reset signals, including the Power-On Reset (POR), the System Reset (SYSRST), and the Core Reset (CORERST). The POR signal is used to reset the entire system, while the SYSRST signal resets the system peripherals, and the CORERST signal resets the CPU core.
