MIMX8MN4CVTIZAA - NXP

Description: NXP - MIMX8MN4CVTIZAA - MPU, 32BIT, 1.4GHZ, -40 TO 105DEG C ROHS COMPLIANT: YES

Download MIMX8MN4CVTIZAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX8MN4CVTIZAA - NXP - PCB symbol
click to zoom
PCB Footprints

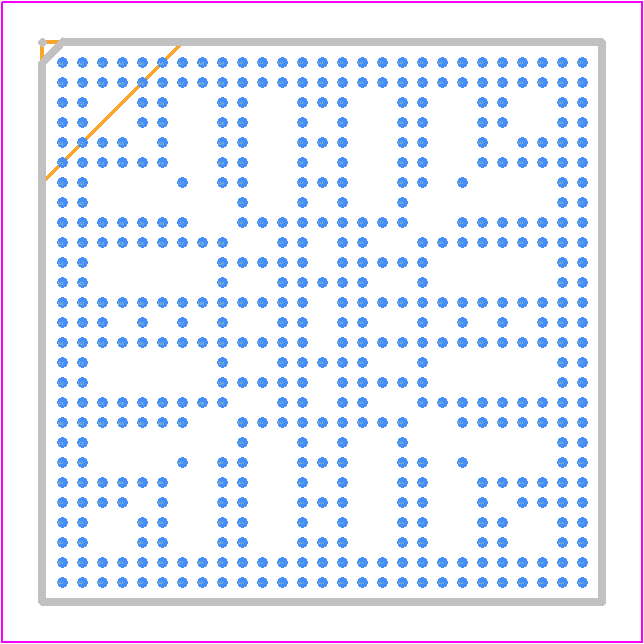

MIMX8MN4CVTIZAA - NXP PCB footprint - BGA - BGA - SOT-1967
click to zoom
3D Models
MIMX8MN4CVTIZAA - NXP - 3D model - BGA - SOT-1967
click to zoom

MIMX8MN4CVTIZAA Details

  • Manufacturer Part Number:

    MIMX8MN4CVTIZAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-486

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-11-22

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B486

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    486

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA486,27X27,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max:

    1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MN4CVTIZAA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MIMX8MN4CVTIZAA is -40°C to 105°C. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To optimize power consumption on MIMX8MN4CVTIZAA, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, you can use the device's power management features, such as the Power Management Unit (PMU) and the Low Power Mode (LPM).
  • The maximum clock frequency supported by MIMX8MN4CVTIZAA is up to 1.6 GHz for the Cortex-A53 and Cortex-M4 cores. However, the actual clock frequency may vary depending on the specific use case and operating conditions.
  • To configure the DDR memory interface on MIMX8MN4CVTIZAA, you need to set the DDR clock frequency, configure the DDR timing parameters, and enable the DDR controller. You can use the device's reference manual and the NXP-provided software development kit (SDK) to configure the DDR memory interface.
  • The MIMX8MN4CVTIZAA supports up to 4GB of RAM and up to 128GB of flash memory. However, the actual memory capacity may vary depending on the specific use case and system design.
