MIMX8MQ5DVAJZAB - NXP

Description: SOC i.MX 8M ARM Cortex A53/ARM Cortex M4 621-Pin FBGA Tray

Download MIMX8MQ5DVAJZAB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

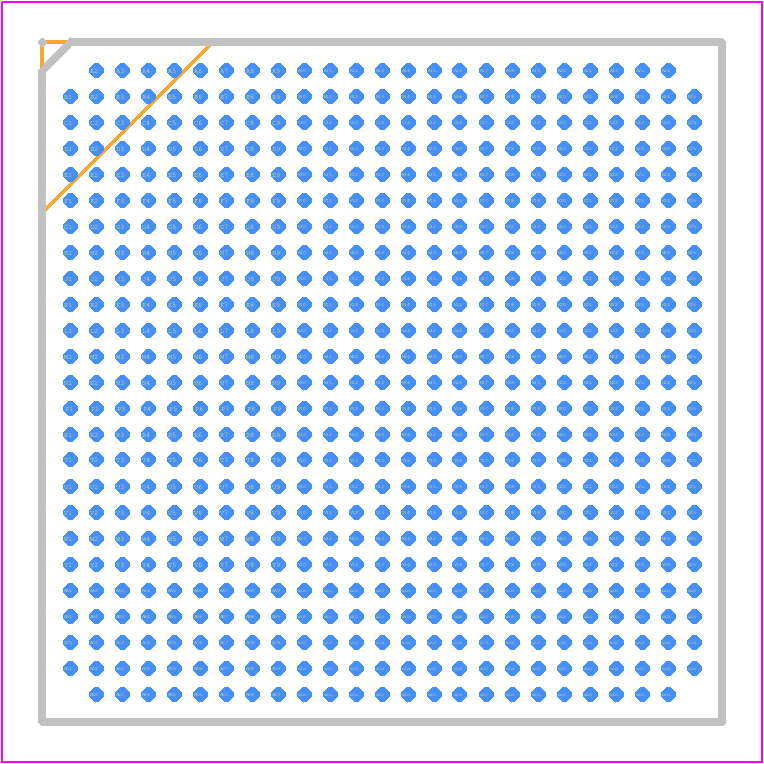

MIMX8MQ5DVAJZAB - NXP PCB footprint - BGA - BGA - FBGA621
click to zoom
3D Models
MIMX8MQ5DVAJZAB - NXP  - 3D model - BGA - FBGA621
click to zoom

MIMX8MQ5DVAJZAB Details

  • Manufacturer Part Number:

    MIMX8MQ5DVAJZAB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-621

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-10-17

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B621

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA621,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.18 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MQ5DVAJZAB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MIMX8MQ5DVAJZAB is -40°C to 105°C.
  • The DDR memory interface on the MIMX8MQ5DVAJZAB can be configured using the DDR Controller (DDRC) module. Refer to the NXP documentation and the device tree source (DTS) files for configuration details.
  • The maximum clock frequency supported by the MIMX8MQ5DVAJZAB is up to 1.6 GHz.
  • The GPU on the MIMX8MQ5DVAJZAB is a Vivante GC7000Lite GPU. You can use it by using the NXP-provided GPU drivers and APIs, or by using a third-party GPU library such as OpenGL ES.
  • The power consumption of the MIMX8MQ5DVAJZAB varies depending on the operating frequency, voltage, and usage scenario. Refer to the NXP documentation for power consumption estimates and guidelines for power management.
