MIMX8MQ6DVAJZIB - NXP

Description: FBGA621, fine-pitch ball grid array package; 621 terminals, 0.65 mm pitch, 17 mm x 17 mm x 2.03 mm body

Download MIMX8MQ6DVAJZIB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

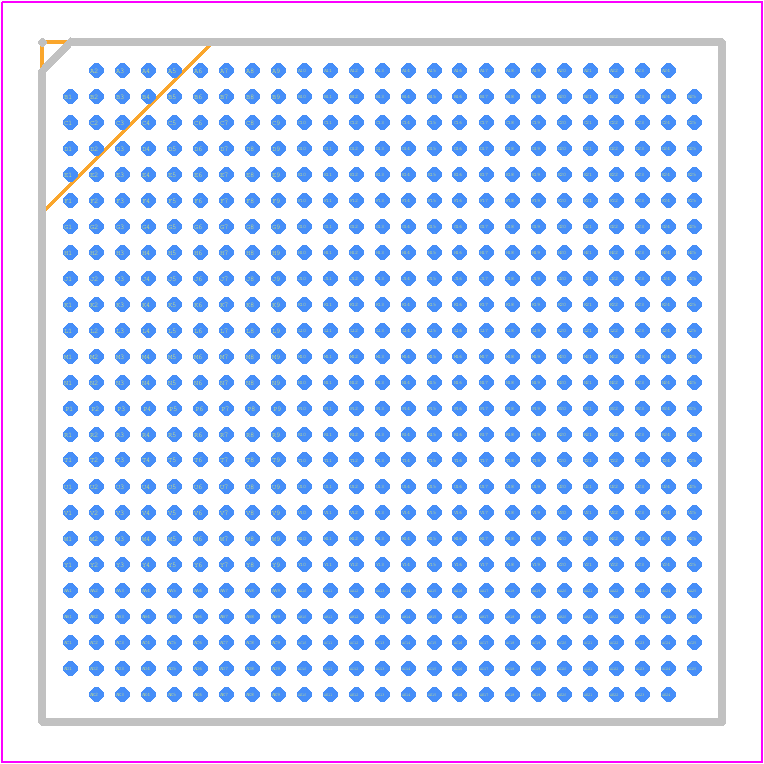

MIMX8MQ6DVAJZIB - NXP PCB footprint - BGA - BGA - SOT1840-3
click to zoom
3D Models
MIMX8MQ6DVAJZIB - NXP  - 3D model - BGA - SOT1840-3
click to zoom

MIMX8MQ6DVAJZIB Details

  • Manufacturer Part Number:

    MIMX8MQ6DVAJZIB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-621

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B621

  • JESD-609 Code:

    e2

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA621,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.18 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.99 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MQ6DVAJZIB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MIMX8MQ6DVAJZIB is -40°C to 105°C. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To optimize power consumption on MIMX8MQ6DVAJZIB, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, you can use the device's power management features, such as the Power Management Unit (PMU) and the Low Power Mode (LPM), to reduce power consumption.
  • The maximum frequency of the Cortex-A53 core on MIMX8MQ6DVAJZIB is up to 1.3 GHz, while the maximum frequency of the Cortex-M4 core is up to 266 MHz.
  • The DDR memory interface on MIMX8MQ6DVAJZIB can be configured using the DDR Controller (DDRC) registers. You need to set the DDR clock frequency, memory timing parameters, and other configuration options according to your specific DDR memory module.
  • The MIMX8MQ6DVAJZIB can support up to 4 GB of RAM and up to 128 GB of flash memory, depending on the specific configuration and memory modules used.
