MIMX8UX5AVOFZAC - NXP

Description: SOC i.MX 8DualX ARM Cortex A35/ARM Cortex M4F Automotive 417-Pin FBGA Tray

Download MIMX8UX5AVOFZAC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

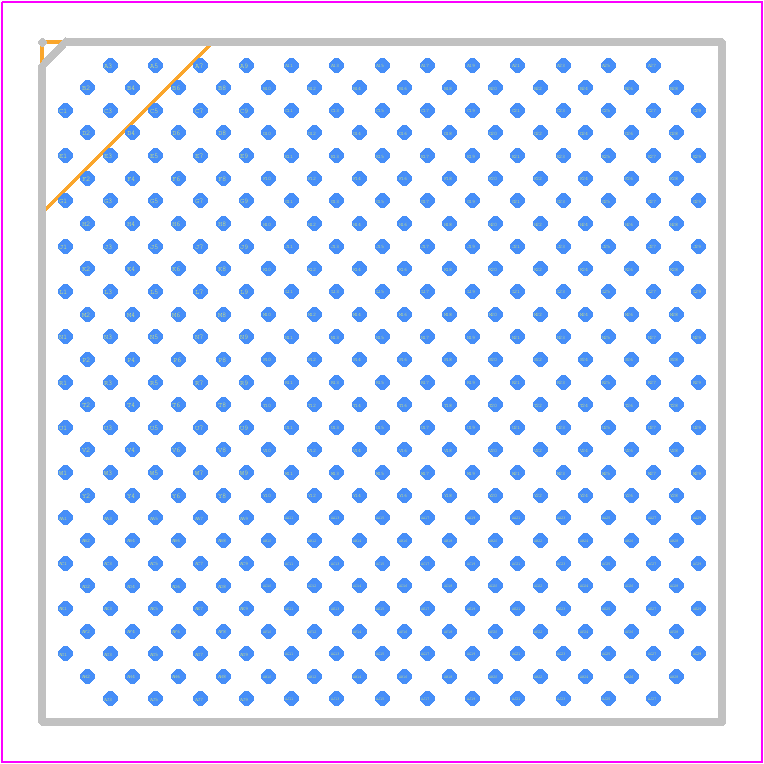

MIMX8UX5AVOFZAC - NXP PCB footprint - BGA - BGA - FCPBGA 417
click to zoom
3D Models
MIMX8UX5AVOFZAC - NXP  - 3D model - BGA - FCPBGA 417
click to zoom

MIMX8UX5AVOFZAC Details

  • Manufacturer Part Number:

    MIMX8UX5AVOFZAC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCPBGA-417

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2020-04-09

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12.3

  • Boundary Scan:

    YES

  • Bus Compatibility:

    CAN(3), SAI(4), SPI(4), UART(6)

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-PBGA-B417

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    75

  • Number of Terminals:

    417

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA417,29X29,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    512000

  • Seated Height-Max:

    2.73 mm

  • Supply Current-Max:

    5000 mA

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8UX5AVOFZAC Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MIMX8UX5AVOFZAC is -40°C to 105°C, with a junction temperature of up to 125°C.
  • The DDR memory interface on the MIMX8UX5AVOFZAC can be configured using the DDR Controller (DDRC) registers. Refer to the NXP documentation and the Linux kernel source code for examples of how to configure the DDR interface.
  • The maximum clock speed of the Cortex-A35 core on the MIMX8UX5AVOFZAC is 1.2 GHz.
  • The GPU on the MIMX8UX5AVOFZAC is a Vivante GC7000Lite GPU. To use the GPU, you will need to use a graphics driver and API such as OpenGL ES or Vulkan. NXP provides a GPU driver and documentation as part of their Linux BSP.
  • The power consumption of the MIMX8UX5AVOFZAC depends on the operating frequency, voltage, and usage scenario. According to the datasheet, the typical power consumption is around 2-3W at 1.2 GHz, but this can vary depending on the specific use case.
