- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MIMX8UX6AVOFZAC
- Part Number MIMX8UX6AVOFZAC
- Manufacturer NXP
- Pin Count 417
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - FCPBGA 417
- Released Date Nov 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIMX8UX6AVOFZAC Details
-
Manufacturer Part Number:
MIMX8UX6AVOFZAC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
FCPBGA-417
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
26 Weeks
-
Date Of Intro:
2020-04-09
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
12.3
-
Boundary Scan:
YES
-
Bus Compatibility:
CAN(3), SAI(4), SPI(4), UART(6)
MIMX8UX6AVOFZAC Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the MIMX8UX6AVOFZAC is -40°C to 105°C, with a junction temperature of up to 125°C.
-
The DDR memory interface on the MIMX8UX6AVOFZAC can be configured using the DDR Controller (DDRC) registers. Refer to the NXP documentation and the Linux kernel source code for examples of how to configure the DDR interface.
-
The maximum clock frequency supported by the MIMX8UX6AVOFZAC is up to 1.6 GHz for the Cortex-A35 and Cortex-A53 cores, and up to 650 MHz for the Cortex-M4 core.
-
The GPU on the MIMX8UX6AVOFZAC is a Vivante GC7000UL GPU. To use the GPU, you will need to use a graphics driver and API such as OpenGL ES or Vulkan. NXP provides a GPU driver and documentation as part of their Linux BSP.
-
The power consumption of the MIMX8UX6AVOFZAC varies depending on the operating frequency, voltage, and usage scenario. According to the datasheet, the typical power consumption is around 2-3W at 1.2V and 1.6 GHz. However, this can be optimized using power-saving features and techniques.
Trust Checks
Expert Contribution
System Verified
Community Approved
MIMX8UX6AVOFZAC Overview

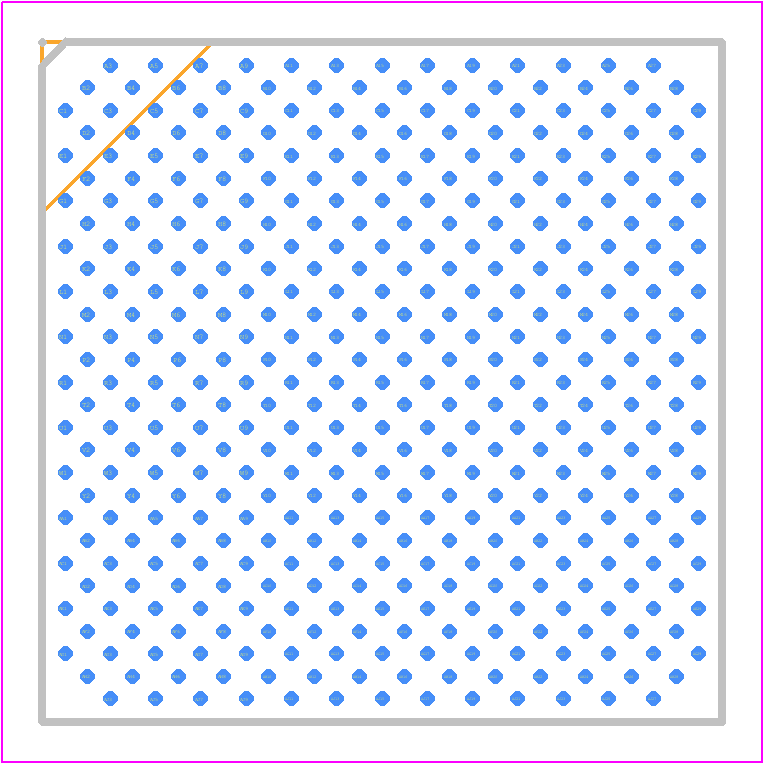

Use the download button to access the MIMX8UX6AVOFZAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMX8,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
