MIMX9131CVVXJAA - NXP

Description: Processors - Application Specialized Microprocessors MPU featuring Arm Cortex A55 for industrial & consumer applications

Download MIMX9131CVVXJAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX9131CVVXJAA - NXP - PCB symbol
click to zoom
PCB Footprints

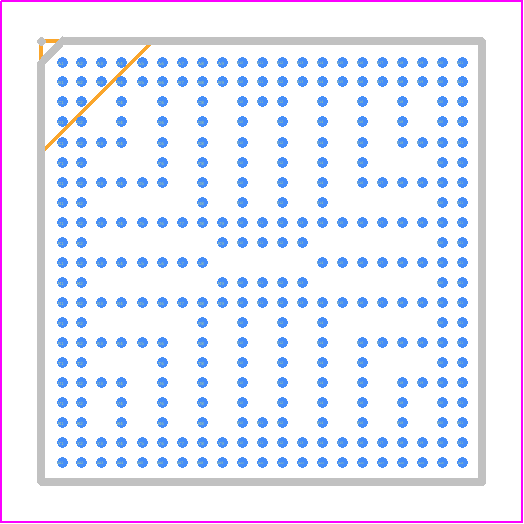

MIMX9131CVVXJAA - NXP PCB footprint - BGA - BGA - 11mm x 11mm x 0.5mm Pitch
click to zoom
3D Models
MIMX9131CVVXJAA - NXP - 3D model - BGA - 11mm x 11mm x 0.5mm Pitch
click to zoom

MIMX9131CVVXJAA Details

  • Manufacturer Part Number:

    MIMX9131CVVXJAA

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX9131CVVXJAA Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide for the MIMX9131CVVXJAA in the 'PCB Layout Guidelines' document, which can be found on the NXP website. It's essential to follow this guide to ensure proper thermal management, signal integrity, and EMI performance.
  • To optimize power consumption, ensure that the device is in the correct power mode for the application. Use the power gating feature to turn off unused peripherals, and adjust the clock frequency and voltage to meet the system's requirements. Additionally, use the low-power modes, such as sleep or deep sleep, when the device is not actively processing data.
  • The MIMX9131CVVXJAA has an operating temperature range of -40°C to 105°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and longevity.
  • To ensure EMC, follow the guidelines provided in the 'EMC Guidelines' document on the NXP website. This includes using proper shielding, grounding, and filtering techniques, as well as following the recommended PCB layout and component placement guidelines.
  • The recommended crystal oscillator frequency for the MIMX9131CVVXJAA is 32.768 kHz. This frequency is used as the clock source for the device's internal clock generator and is essential for proper device operation.
