MIMXRT106FDVL6B - NXP

Description: ARM Microcontrollers - MCU i.MXRT106A, USB Fix

Download MIMXRT106FDVL6B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT106FDVL6B - NXP - PCB symbol
click to zoom
PCB Footprints

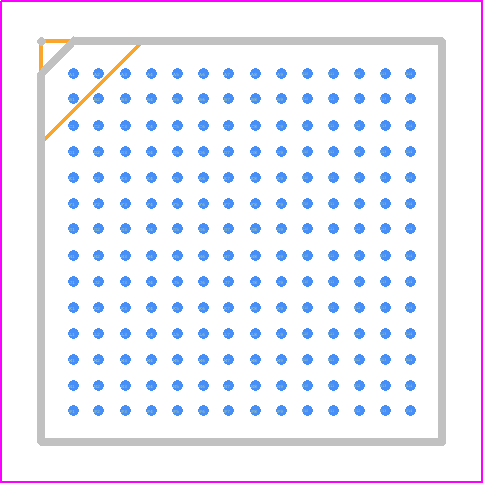

MIMXRT106FDVL6B - NXP PCB footprint - BGA - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom
3D Models
MIMXRT106FDVL6B - NXP - 3D model - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom

MIMXRT106FDVL6B Details

  • Manufacturer Part Number:

    MIMXRT106FDVL6B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.43 mm

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT106FDVL6B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT106FDVL6B is -40°C to 105°C.
  • The clock settings for the MIMXRT106FDVL6B can be configured using the Clock Control Module (CCM) registers. Refer to the MIMXRT106FDVL6B Reference Manual for detailed information on clock configuration.
  • The maximum frequency of the Cortex-M7 core in the MIMXRT106FDVL6B is 528 MHz.
  • The FlexSPI interface on the MIMXRT106FDVL6B can be used to connect to external serial flash memories or other devices. Refer to the MIMXRT106FDVL6B Reference Manual for detailed information on FlexSPI configuration and usage.
  • The power consumption of the MIMXRT106FDVL6B varies depending on the operating mode. In Run mode, the typical power consumption is around 250 mA. In Low Power mode, the typical power consumption is around 10 mA. Refer to the MIMXRT106FDVL6B datasheet for detailed power consumption information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT106FDVL6B Overview

Use the download button to access the MIMXRT106FDVL6B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
