- Part Number MINI58LDE
- Manufacturer Nuvoton
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP-48L
- Released Date Sep 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MINI58LDE Details
-
Manufacturer Part Number:
MINI58LDE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.25
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
7
-
Has ADC:
YES
-
Bit Size:
32
-
CPU Family:
CORTEX-M0
-
Clock Frequency-Max:
24 MHz
-
DAC Channels:
NO
MINI58LDE Frequently Asked Questions (FAQs)
-
The MINI58LDE can operate from -40°C to 105°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
-
The MINI58LDE has an internal oscillator that can be used as the clock source. To configure it, set the CKS bits in the Clock Control Register (CLKCTL) to select the desired clock source and frequency. You can also use an external clock source by connecting it to the XTAL1 pin and configuring the CKS bits accordingly.
-
The MINI58LDE can sink or source up to 20mA on its I/O pins, but it's recommended to limit the current to 10mA or less to ensure reliable operation and prevent overheating.
-
The MINI58LDE has a built-in watchdog timer that can be enabled by setting the WDTEN bit in the Watchdog Timer Control Register (WDTCTL). You can then set the watchdog timer period using the WDTPER bits in the WDTCTL register. The watchdog timer will reset the device if it is not cleared within the specified period.
-
Yes, the MINI58LDE has several low-power modes that can be used to conserve energy. These include Idle mode, Sleep mode, and Power-down mode. You can enter these modes by setting the corresponding bits in the Power Management Control Register (PMCCTL). In these modes, the device can reduce its power consumption to as low as 1.5uA.
Trust Checks
Community Provided
System Verified
Community Approved
MINI58LDE Overview

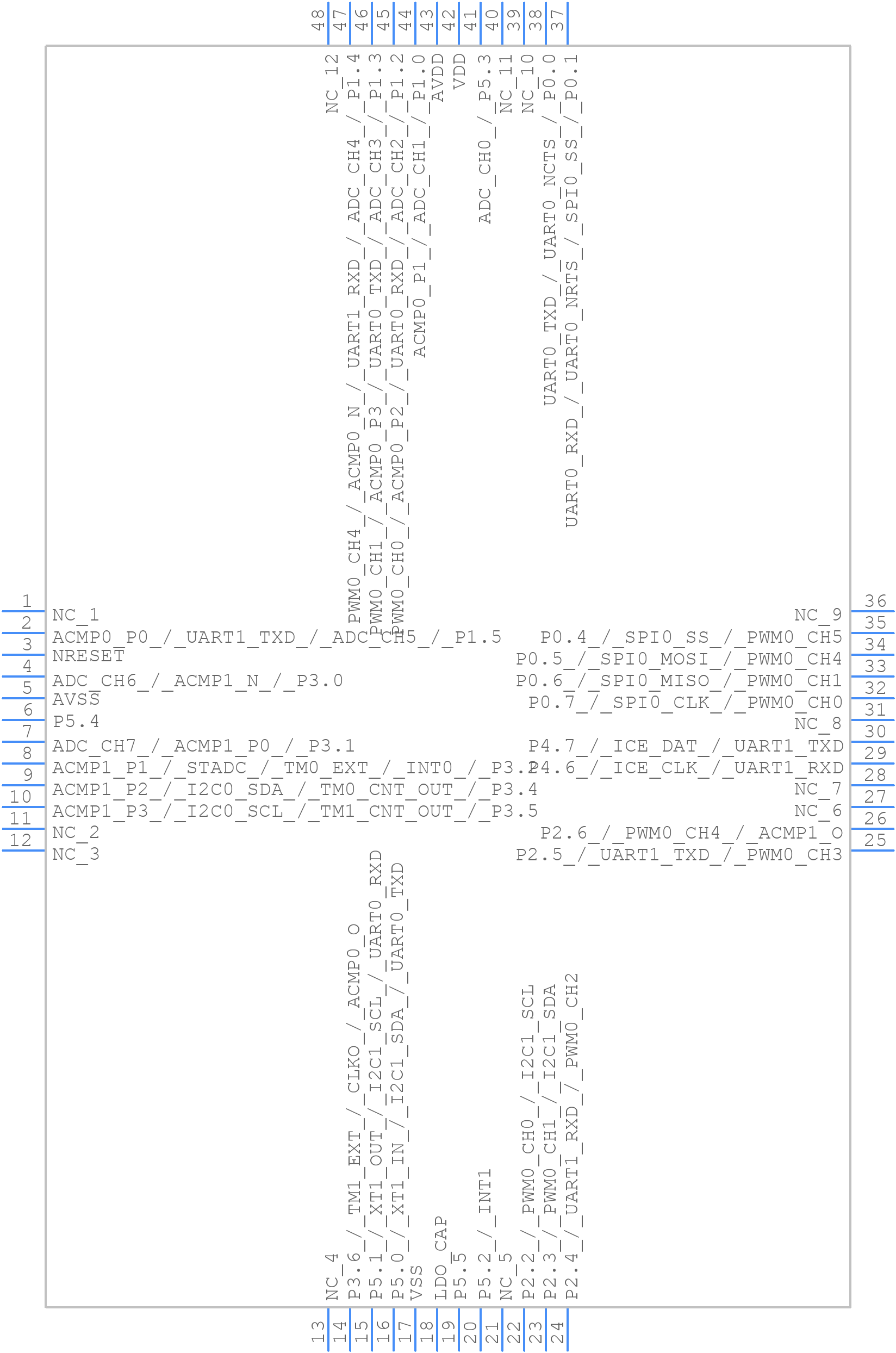

Use the download button to access the MINI58LDE schematic symbol, PCB footprint, and 3D model.
