MIP15R12E1TN-BP - MCC

Description: IGBT Modules 1200V 15A

Download MIP15R12E1TN-BP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MIP15R12E1TN-BP model

Email notifications will be applied after download.

Send part feedback

Symbol

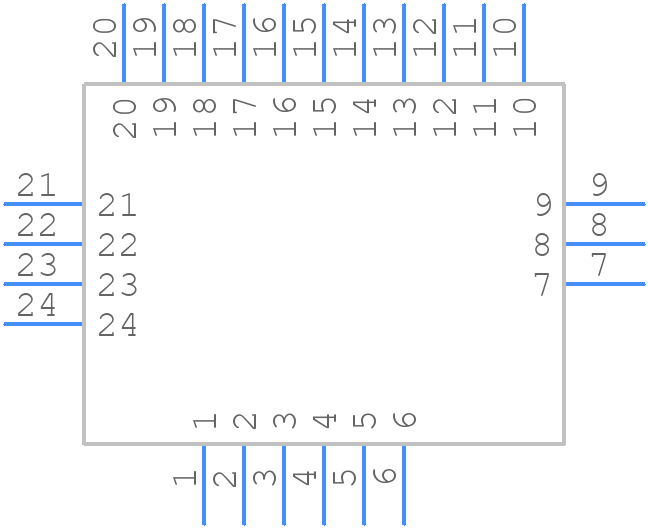

MIP15R12E1TN-BP - MCC - PCB symbol

PCB Footprints

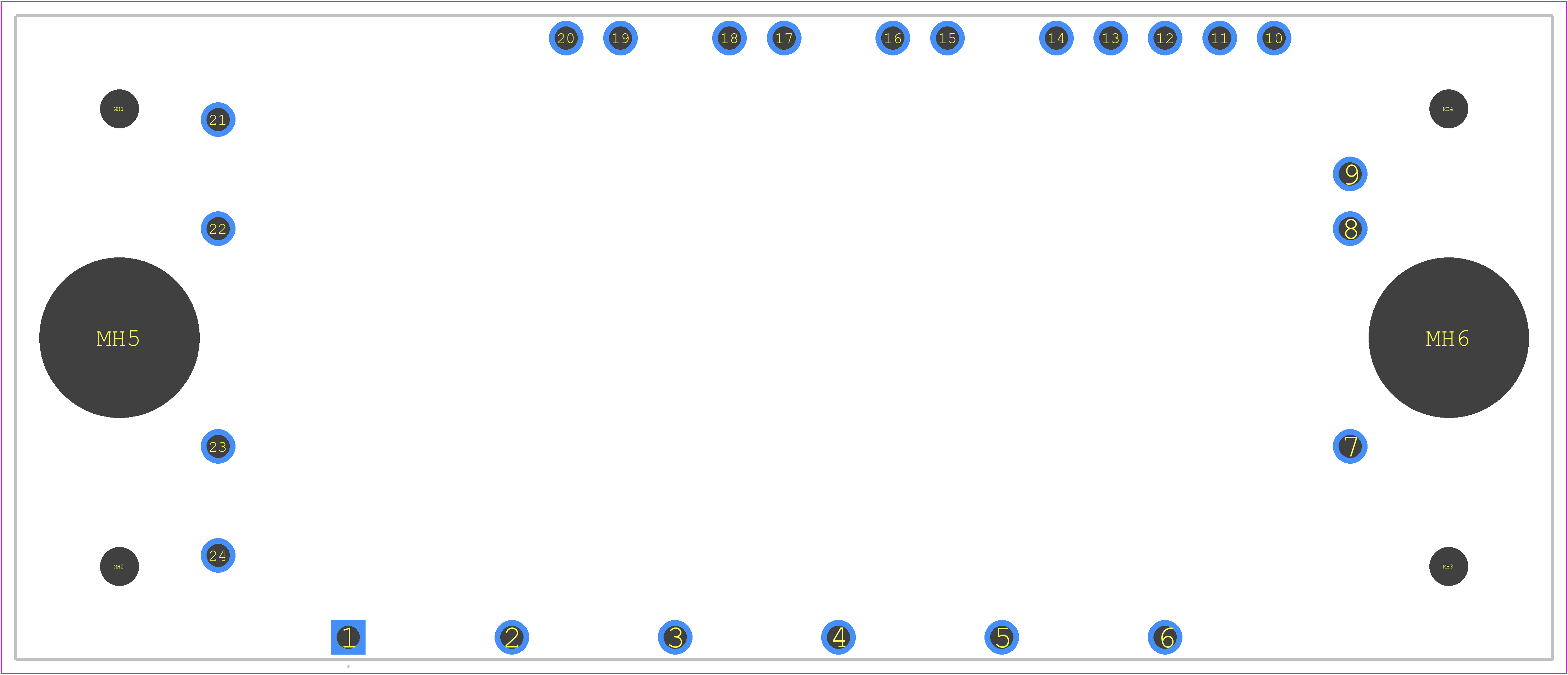

MIP15R12E1TN-BP - MCC PCB footprint - Other - Other - MIP15R12E1TN-BP-4

3D Models

MIP15R12E1TN-BP - MCC - 3D model - Other - MIP15R12E1TN-BP-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIP15R12E1TN-BP
Part Number MIP15R12E1TN-BP
Manufacturer MCC
Pin Count 24
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - MIP15R12E1TN-BP-4
Released Date Nov 10, 2023
Last Modified Date Mar 13, 2024 1:00 PM UTC
Pinout / Pin List Click Here (Member Only)

MIP15R12E1TN-BP Details

Manufacturer Part Number:
MIP15R12E1TN-BP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Micro Commercial Components
YTEOL:
6
Collector-Emitter Voltage-Max:
1200 V
VCEsat-Max:
1.85 V

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MIP15R12E1TN-BP Overview

Use the download button to access the MIP15R12E1TN-BP schematic symbol, PCB footprint, and 3D model.
