MIP15R12P2STN-BP - MCC

Description: IGBT Modules 1200V 15A

Download MIP15R12P2STN-BP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MIP15R12P2STN-BP model

Email notifications will be applied after download.

Send part feedback

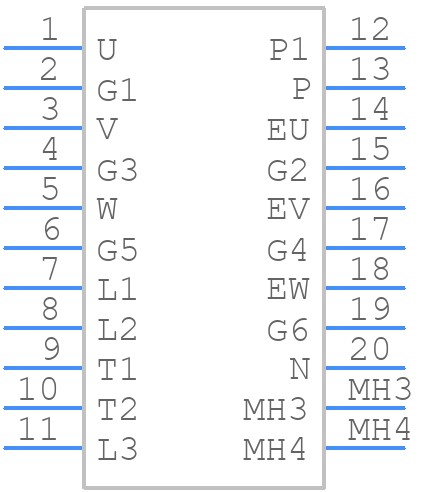

Symbol

MIP15R12P2STN-BP - MCC - PCB symbol

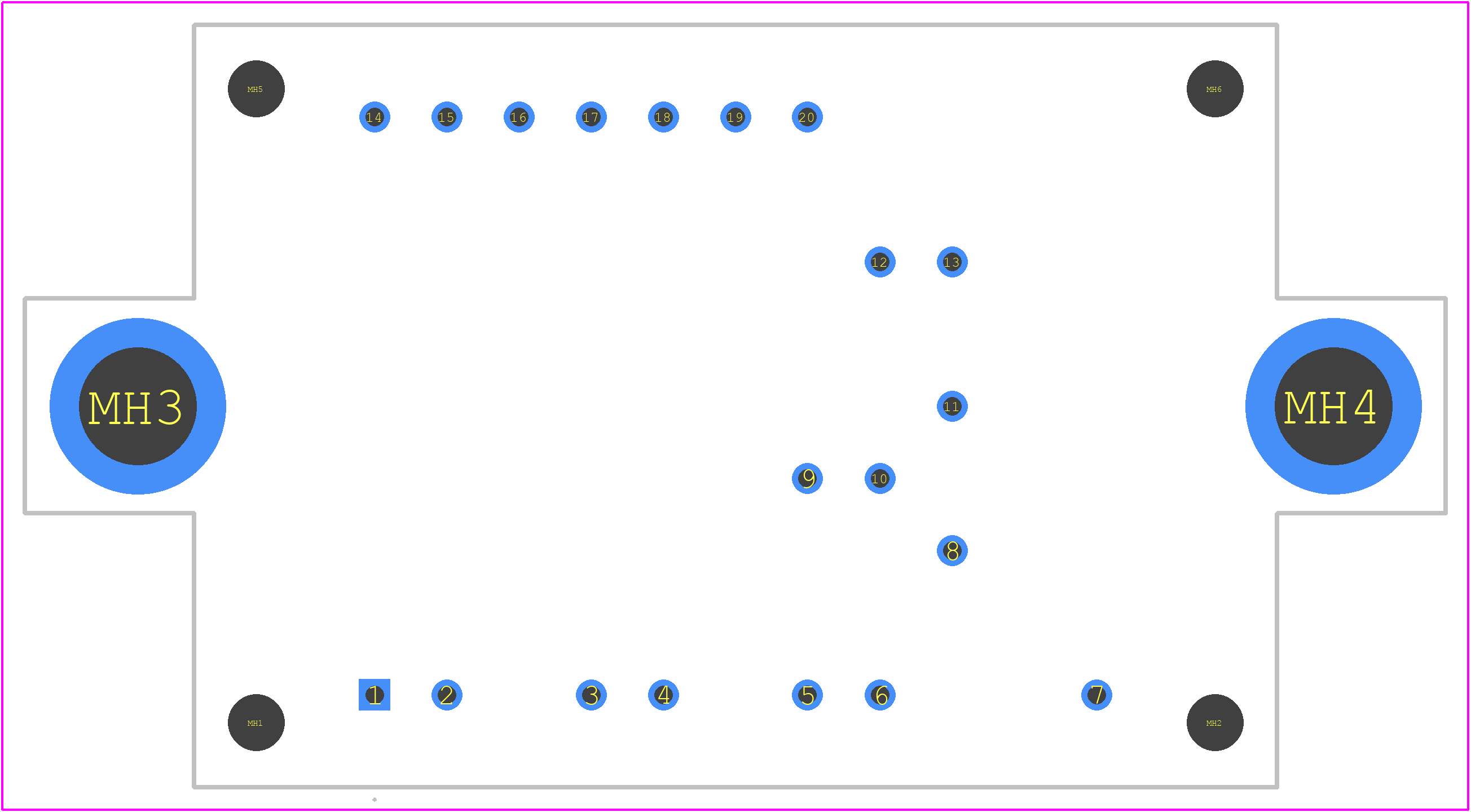

PCB Footprints

MIP15R12P2STN-BP - MCC PCB footprint - Other - Other - P2S

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIP15R12P2STN-BP
Part Number MIP15R12P2STN-BP
Manufacturer MCC
Pin Count 22
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - P2S
Released Date Jan 8, 2024
Last Modified Date Mar 13, 2024 1:00 PM UTC
Pinout / Pin List Click Here (Member Only)

MIP15R12P2STN-BP Details

Manufacturer Part Number:
MIP15R12P2STN-BP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Micro Commercial Components
YTEOL:
6
Collector-Emitter Voltage-Max:
1200 V
VCEsat-Max:
1.9 V

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MIP15R12P2STN-BP Overview

Use the download button to access the MIP15R12P2STN-BP schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MIP15, or try a keyword search, such as IGBTs
